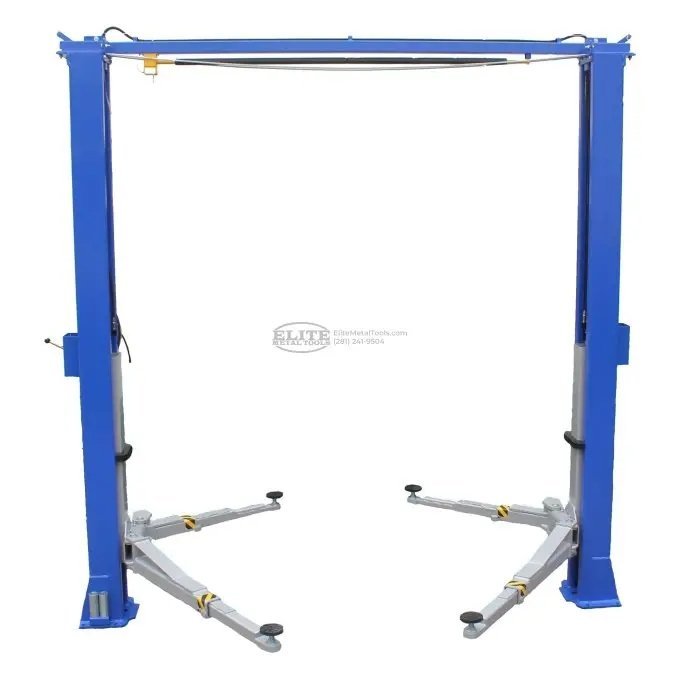

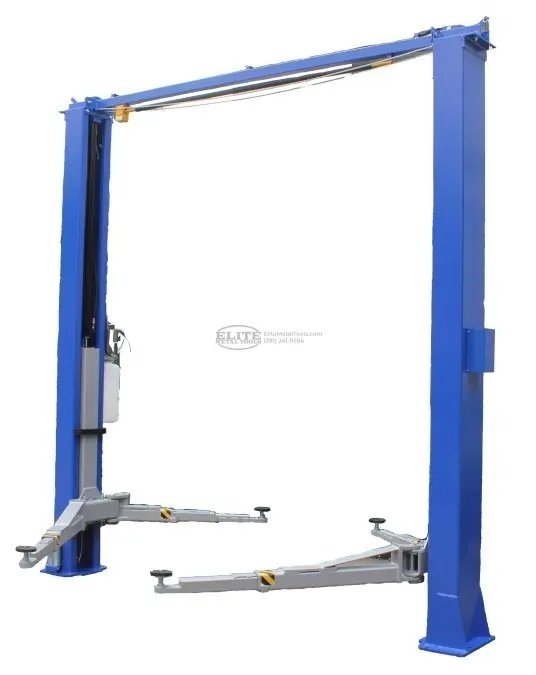

Tuxedo 11,000 lbs Two Post Clear Floor Direct Drive Bi-Symmetric Lift TP11KC-DX

11,000 lbs Capacity
Bi-Symmetric arm design
Rubber Door Guards

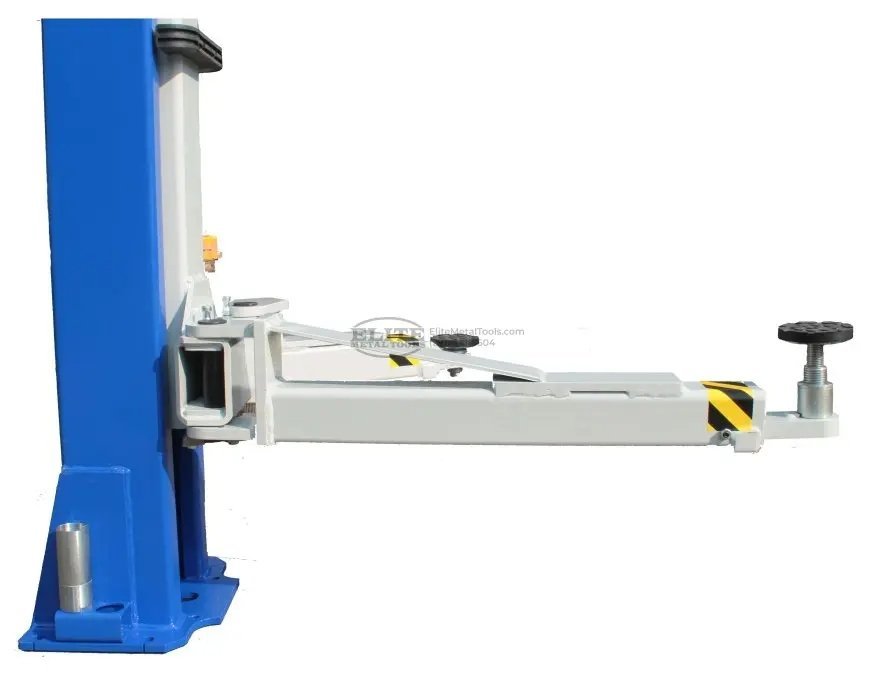

3 Stage Front Arms
Single Piece Column
Direct Drive pull Cylinders
Single Point Lock Release
Heavy Duty Arm Restraint System
Spin Up Low Profile Lift Pads
Stackable Adapters Included
External hose guards
Specifications
Lift Model: TP11KC-DX
Capacity: 11,000 lbs.
Height Overall: 144″
Width Overall w/ Power Unit: 145-1/2″
Max Lift Height: 71″
Width Between Columns: 116″
Min. Pad Height: 4″
Drive Thru Clearance: 104″
Lifting Speed: 50S
Asymmetric / Symmetric: Asymmetric/Symmetric
Clear Floor / Floor Plate: Clear Floor
Short Arm Reach – min/max: 23″ – 45″
Long Arm Reach – min/max: 41″ – 57″
Narrow Bay Setting: NA
Max Load Per Arm: 2,750 lbs.
Ship Weight: 1,705 lbs
Power: 220V – 20 AMP – 1 PH
