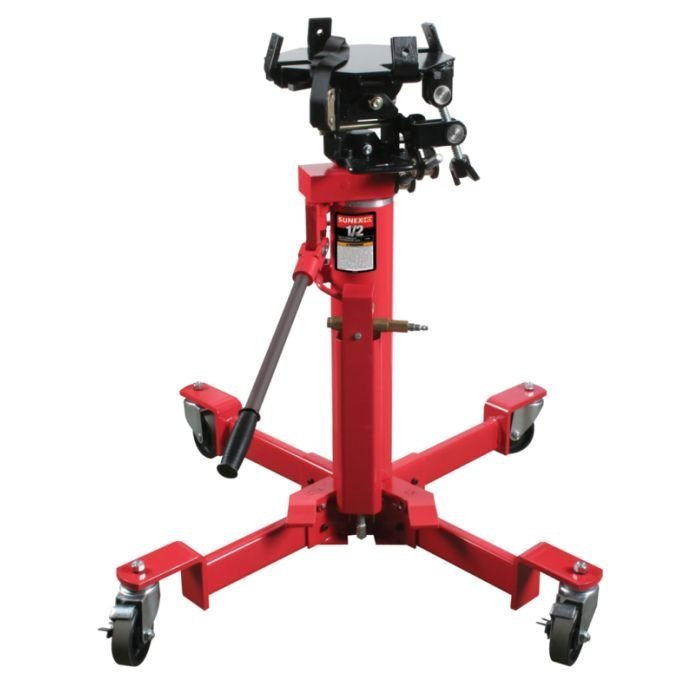

Sunex Telescoping Air Hydraulic Transmission Jack

The Sunex Tools Telescoping Air Hydraulic Transmission Jack allows a single technician to remove, move, or install heavy transmissions and transfer cases for vehicles on a lift. The wide chassis distributes the load safely and keeps the load stable. The universal saddle bracket is adjustable in four directions of tilt that allows for easy positioning of the load. The low lift height allows for easy transfer to workbench and the max lift height accommodates all technicians.
Features

Under Hoist Removal, Installation, and Moving of Transmissions and Transfer Cases
Low Lift Height for Easy Transfer to Work Bench
Maximum Lift Height Accommodates All Technicians
Foot Activated Pedal Raises Air Cylinder Ram to Max Load in Seconds
Manual Pump Second Stage Quickly Raises Saddle to Desired Work Height
Heavy-Duty Nylon Locking Strap with Ratchet Fingers for Securing Load to Saddle
Slow Controlled Lowering

Foot Activated Pedal for First Stage
Hydraulic Release Knob for Second Stage

Four Full Swivel Ball Bearing Casters for Maneuverability
Locking Front Casters

Specifications

Capacity: 1/2 Ton 1,000 lbs.
Saddle Tilt Fore and Aft: 37° by 26°
Saddle Tilt Side to Side Aft: 12°
Base Mounting Area (in.): 30″ x 30″
Max Height: 73.5″
Min Height: 35″
Travel: 38″
Required Air Pressure: 100 psi
Shipping Dimensions: 44.46″ x 15.36″ x 18.11″
Weight: 167 lbs.
Warranty: 1 Year
