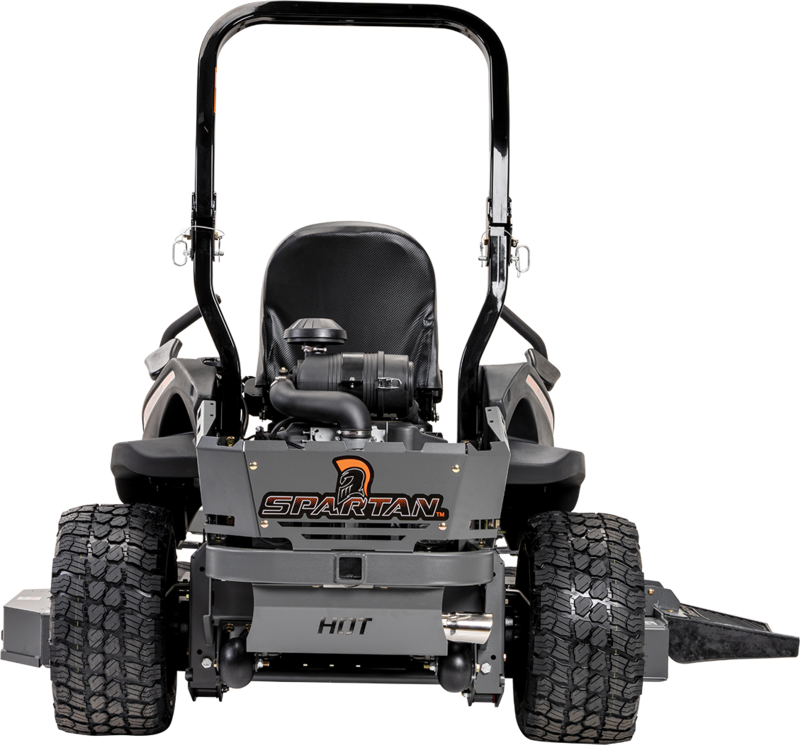

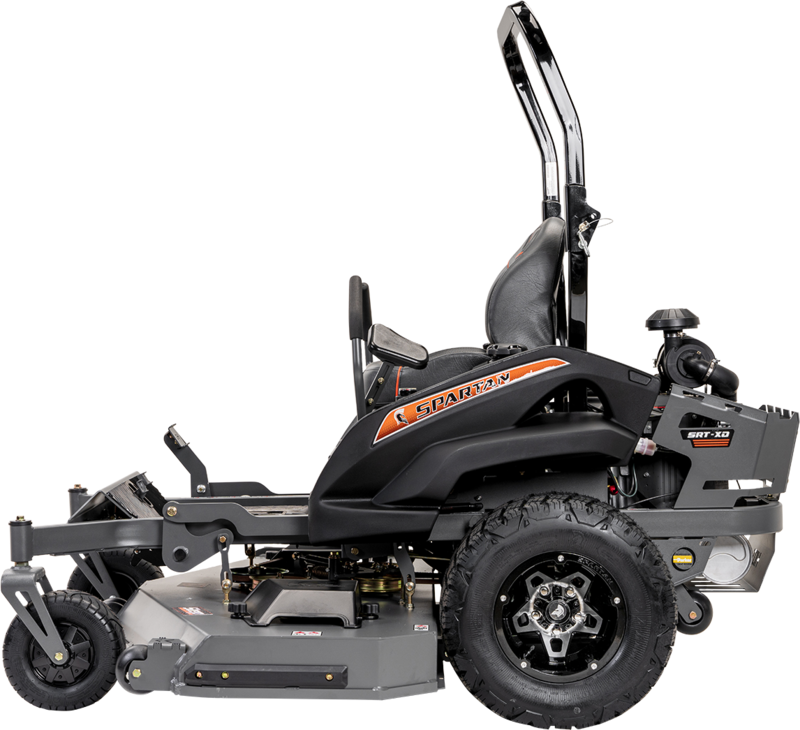

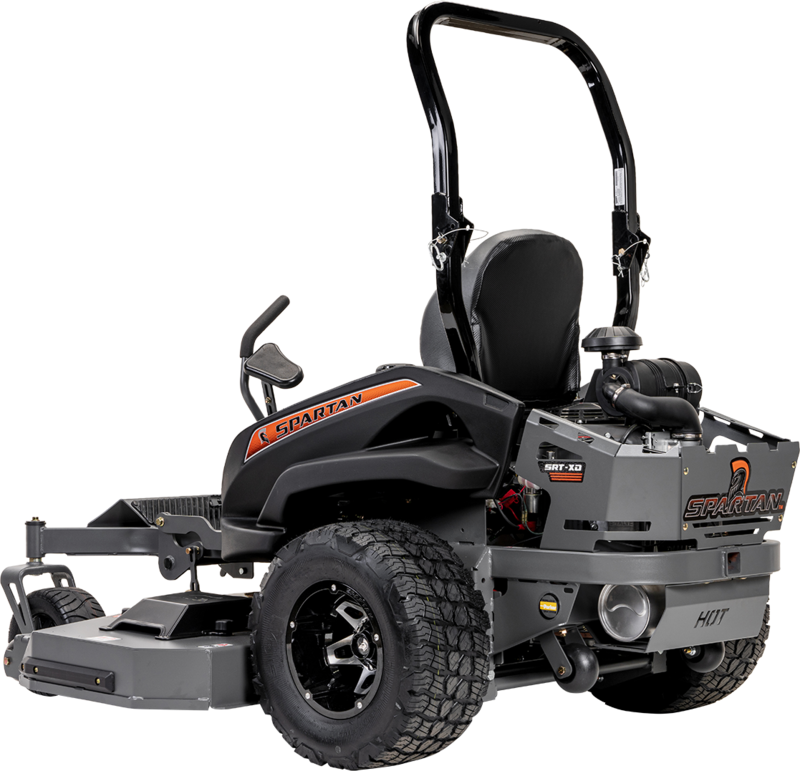

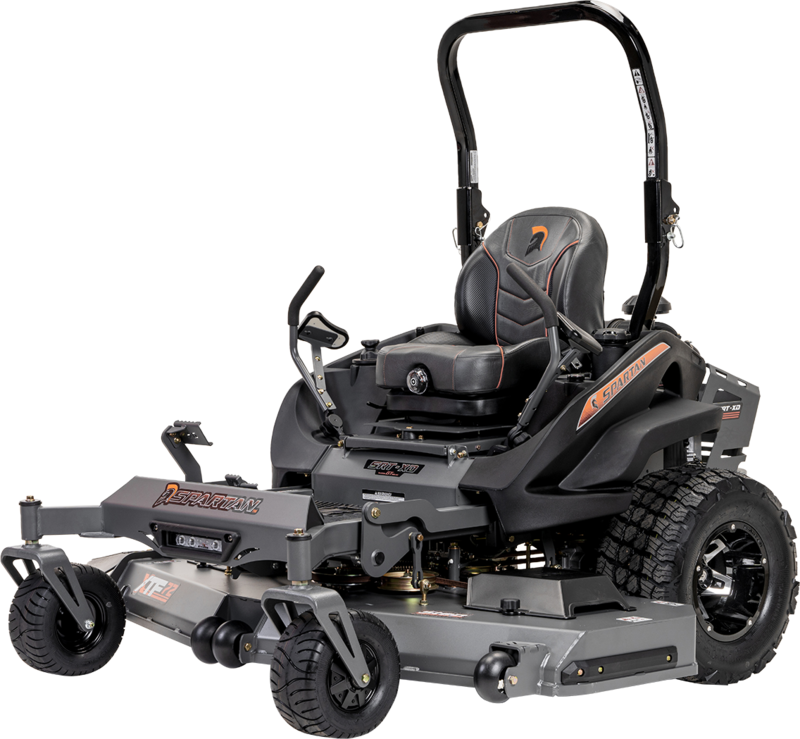

Meet the SRT-XD, a favorite in our Spartan commercial zero turn mower lineup. The biggest Vanguard® engines, along with the two 66 lb Parker HTG-16cc extreme duty transmissions and the five layers of Smart Ride Technology comfort put the SRT-XD at the top of the food chain for commercial quality mowers.
Front & Rear Radial Tires
Rear Spring Suspension
TecsPak® Underseat
360 Degree Seat Plate
3” Adjsutable Seat
LED Light Kit
Aluminum Wheels
Big Block Engines
4 Bearing Spindles
Adjustable Steering Arms
6” Deep Deck
13-14 mph Top Speed
18,500 FPM Blade Tip Speed
Rear Stabilizing Wheels
Parker HTG 16cc Transmissions
Available in 54″, 61″, or 72″ decks starting with the Vanguard® 28HP to the Kawasaki 38.5HP these mowers have become commercial user favorites. Biggest. Baddest. Best….that’s the SRT-XD and we are proud to call it ours. Take a test drive today or ask about our Try Before You Buy program only in Stockyards City!
ENGINE
Engine Name

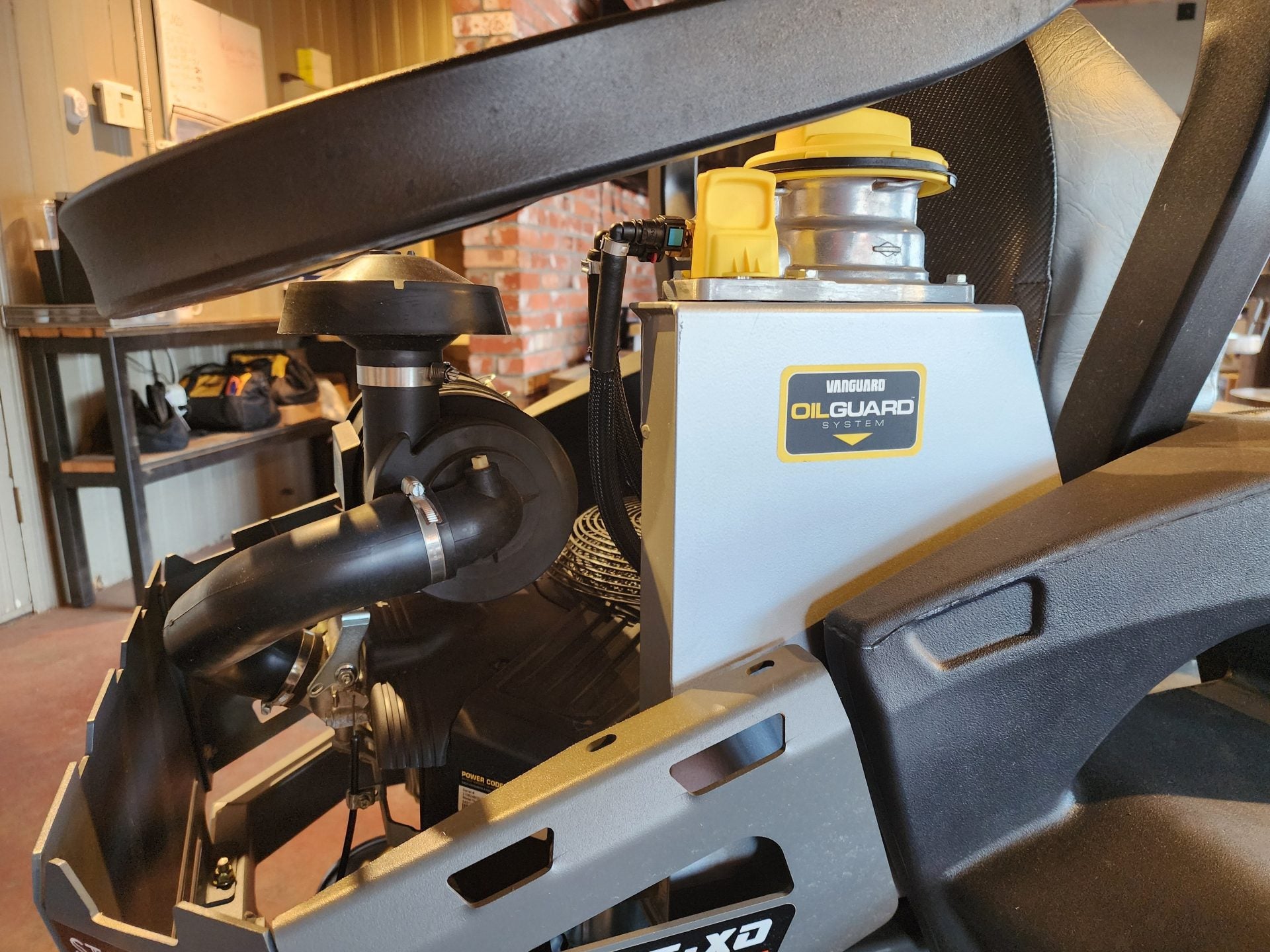

Vanguard Big Block, Kawasaki FX1000, Vanguard EFI, Kawasaki FX1000E
Horsepower
28HP, 37HP, 38.5HP, 40HP
Fuel Capacity
9.5gal
DRIVE LINE
Hydraulic Drive
Parker HTG 16cc wheel motors
Hydraulic Drive Torque
Continuous: 5,970in lb. Max Torque: 7,040in lb.
Hydro Drive Maintenance
1000 hours between oil change
Drive Tires
54″ – 24×10.50-R12 Radial | 61″ – 24×14-R12 Radial
Front Tires
13×6.5-R6 Radial
Wheels Type
Aluminum Rear Wheels and Front Hub Covers
Speed (F/R)
Forward – Up to 14mph | Reverse – Up to 5mph
FEATURES
Seat
Smart Ride Technology consisting of Full Suspension Seat with Adjustable TecsPak Elastomer supports and 360 degree Floating Seat Platform rolling on radial tires and an independent rear frame section suspended by Winamac Coil Spings
Steering Levers
Soft-touch knobs to adjust forward to back. Adjustable up and down
Control Panel LCD Display
Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter, Time between oil change countdown, Fault codes
Control Panel LED Warning Indicators
Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI
Ignition
Key-less, enter personal code to start
Auxiliary Power
12 Volt outlet next to phone holder
Storage
Phone holder, cup holder and deep storage tray
Hitch
2” Rear Receiver Standard
CUTTING DECK
Deck Sizes
54”, 61”, 72″
Deck Depth
6” Deep, Full Floating Deck
Deck Lift
Foot operated with shock assist. Optional push-button electric actuator.
Deck Adjustment
Change-on-the-go Precision Deck Height Dial
Cut Height
1.75″ to 5″ with 15 Cut Heights in Between
Blade Spindles
Cast aluminum, no maintenance/sealed four ag bearings
Parking Brake
Foot operated
Frame
1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame
MEASUREMENTS
Width
54” Deck – 55.5” Wide | 61” Deck – 62.5” Wide | 72″ Deck – 73.5″ Wide
Weight
54” – 1257lbs | 61” – 1280lbs | 72″ – 1367lbs
Length
84″
Height
75″ with ROPS Up – 54″ with Folding ROPS Down
WARRANTY
Engine Warranty
3 Years
Full Warranty
3 Year / 500 Hours Residential – 2 Year / Unlimited Hour Commercial – 120 Day Belt Warranty
Deck Warranty
Lifetime on the leading edge. See full warranty for disclosure and restricitons.
Hydraulic Drive Warranty
3 Year / 1,500 Hour Warranty
Control Panel Warranty
3 Years
