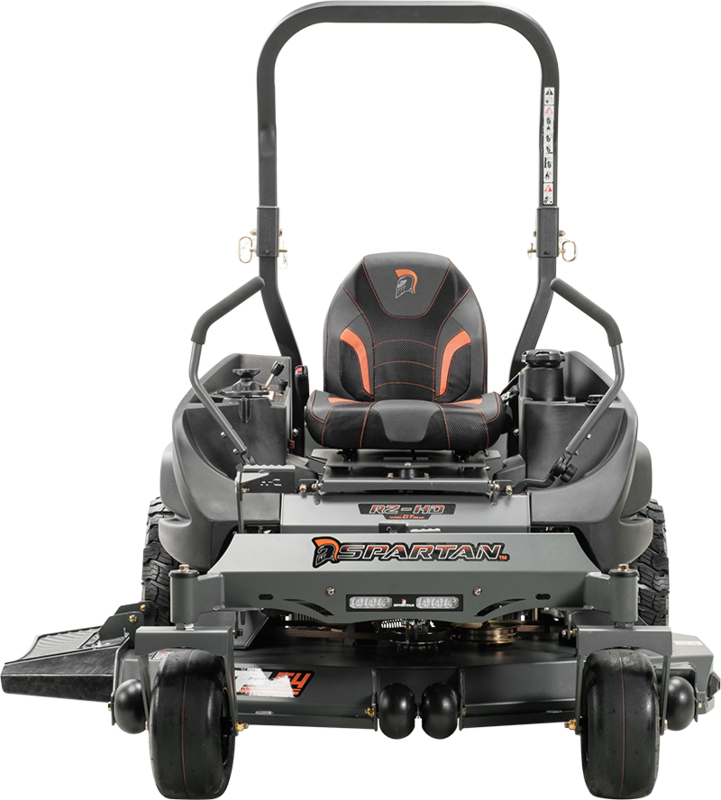

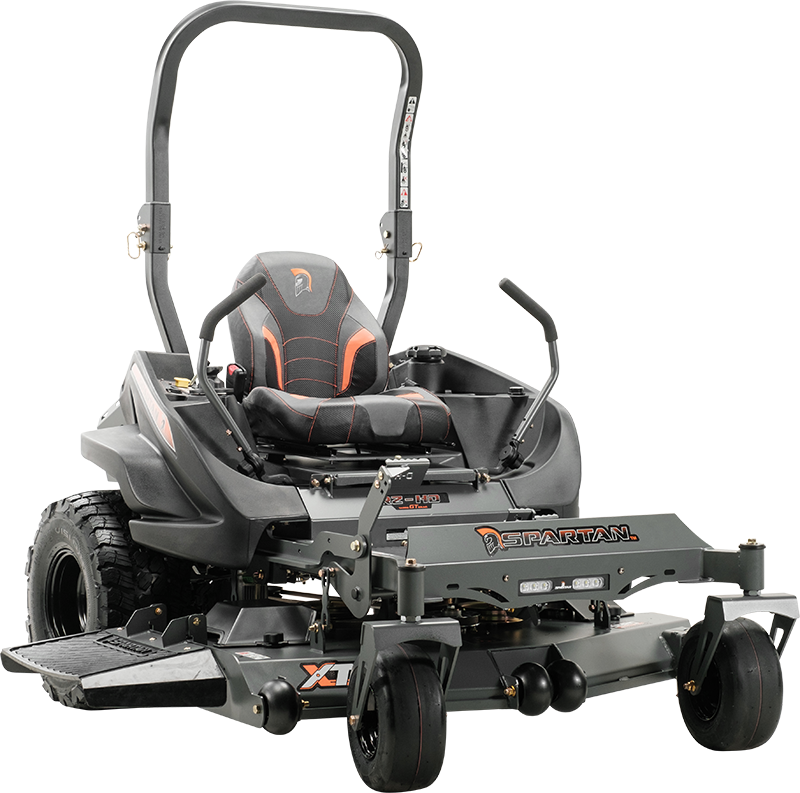

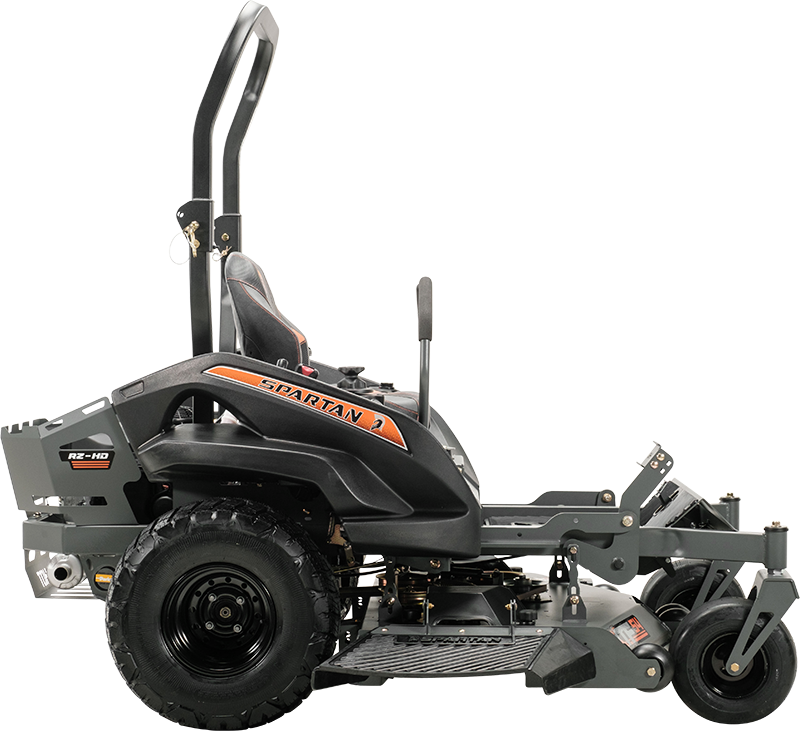

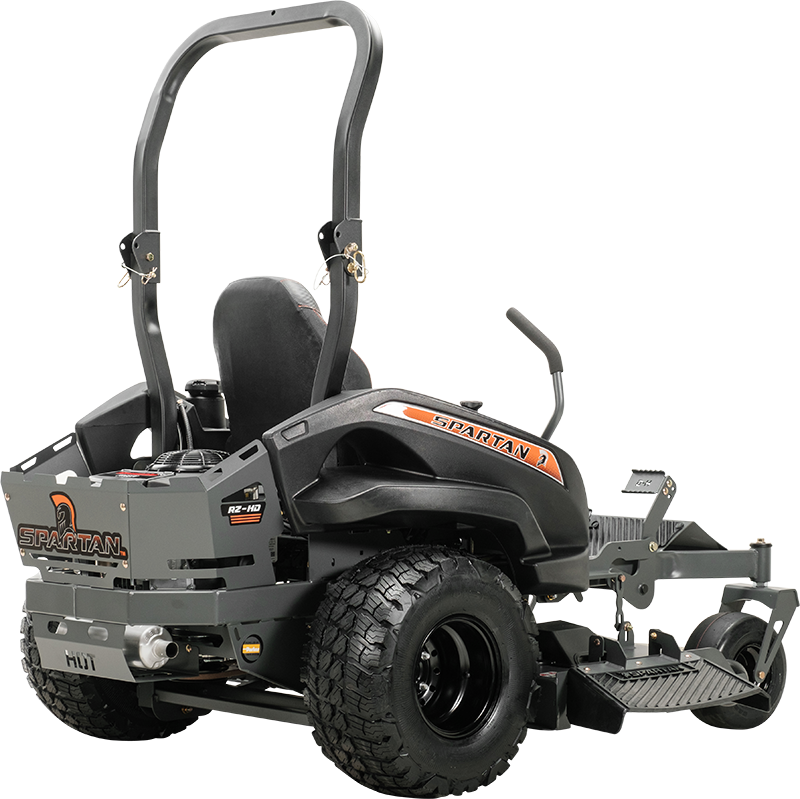

The RZ-HD is patterned after the big guys with 5” deep 7 gauge XTF decks, ROPS, 22” rear radials, Parker hydraulic transmissions, and the Spartan signature styling. Everyone loves the looks and can’t deny the performance.
– 22” Rear Radial Drive Tires
– 5” Deep Deck
– 9 mph Top Speed
– 7 Gauge Decks
– Folding ROPS
– 9.5 gal Fuel Tank
– 18,500 FPM Blade Tip Speed
– Parker HTE 10cc Transmissions
Three deck sizes (48″, 54″ and 61″) and four engine options (Briggs 25 hp, Briggs 27 hp, Kawasaki FR691 23 hp, Kawasaki FR730 24 hp). The RZ-HD is an excellent choice for large or small yards. Test drive one today or RENT this unit and TRY before you BUY!
ENGINE
Engine Name
Kawasaki FR691V,
Kawasaki FR730V,
Briggs & Stratton Commercial
Horsepower
23HP, 24HP, 25HP
Fuel Capacity
9.5gal
DRIVE LINE
Hydraulic Drive
Parker HTE 10cc wheel motors.
Hydraulic Drive Torque
Continuous: 3,140 in/lb| Max Torque: 4,870 in/lb
Hydro Drive Maintenance
1,000 hours between oil change
Drive Tires
48″x54″x61″ | 22x12x10 Rear Soft Radial Tire
Front Tires
13×6.5×6 Smooth Tread with Optional Radial Upgrade
Wheels Type
Steel
Speed (F/R)
Forward: Up to 9MPH | Reverse: Up to 5MPH
FEATURES
Seat
360 Degree Floating Seat Platform
Steering Levers
Adjustable Up and Down
Control Panel LCD Display
Engine Hour Meter – Mower Deck Hour Meter – Tachometer – Low Level Warning Volt Meter – Time between Oil Change Countdown – Fault Codes
Control Panel LED Warning Indicators
Parking Brake Set – Drive Levers – Operator Present – PTO – Low/Hi Battery Volts – Low Oil PSI
Ignition
Key-less, Enter Personal Code to Start
Auxiliary Power
12v Outlet
Storage
Phone Holder, Cup Holder, and Deep Storage Tray
Hitch
N/A
CUTTING DECK
Deck Sizes
48″, 54″, 61″
Deck Depth
5″ Deep, Full-Floating Deck
Deck Lift
Foot Operated with Shock Assist
Deck Adjustment
Change-On-The-Go Precision Deck Height Dial
Cut Height
1” to 4.25” with 15 cut heights in between
Blade Spindles
Cast Aluminum, No Maintenance/Sealed Double Bearings
Parking Brake
Foot Operated
Frame
1.5″ by 3″ Powder Coated Fusion-Bonded Solid Steel Bridge Frame
MEASUREMENTS
Width
48” Deck – 49.5” Wide | 54” Deck – 55.5” Wide | 61″ Deck 62.5″ Wide
Weight
48” – 922 lbs | 54” – 941 lbs | 61″ – 942 lbs
Length
84″
Height
75″ with ROPS Up – 54″ with Folding ROPS Down
WARRANTY
Engine Warranty
3 Years
Full Warranty
3 Year / 400 Hour – 120 Day Belt Warranty
Deck Warranty
Lifetime on the leading edge. See full warranty for disclosure and restrictions.
Hydraulic Drive Warranty
3 years or 750 Hours. See full warranty for disclosure and restrictions.
Control Panel Warranty
3 Years
