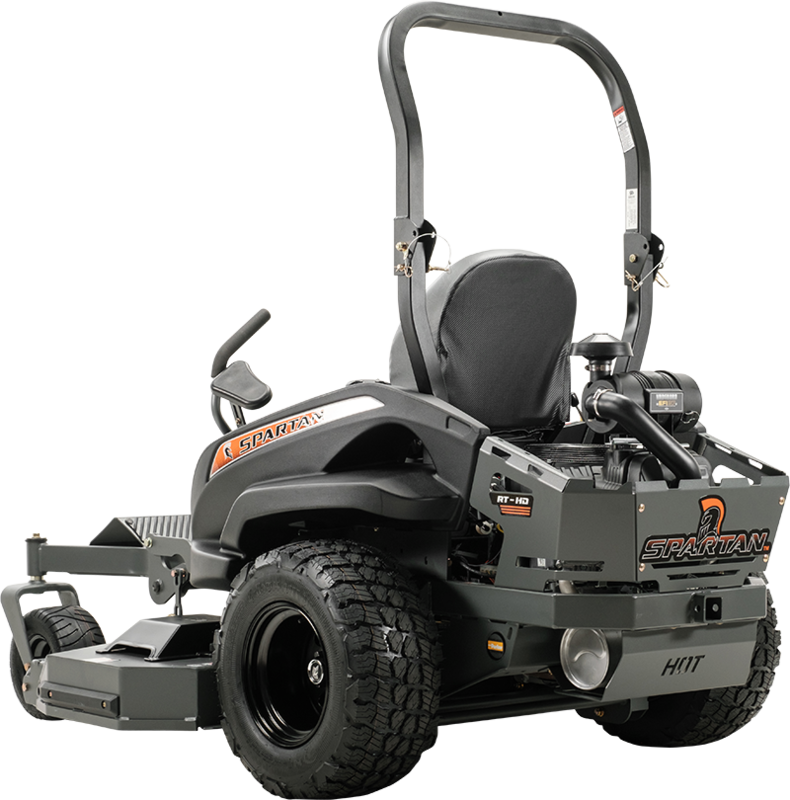

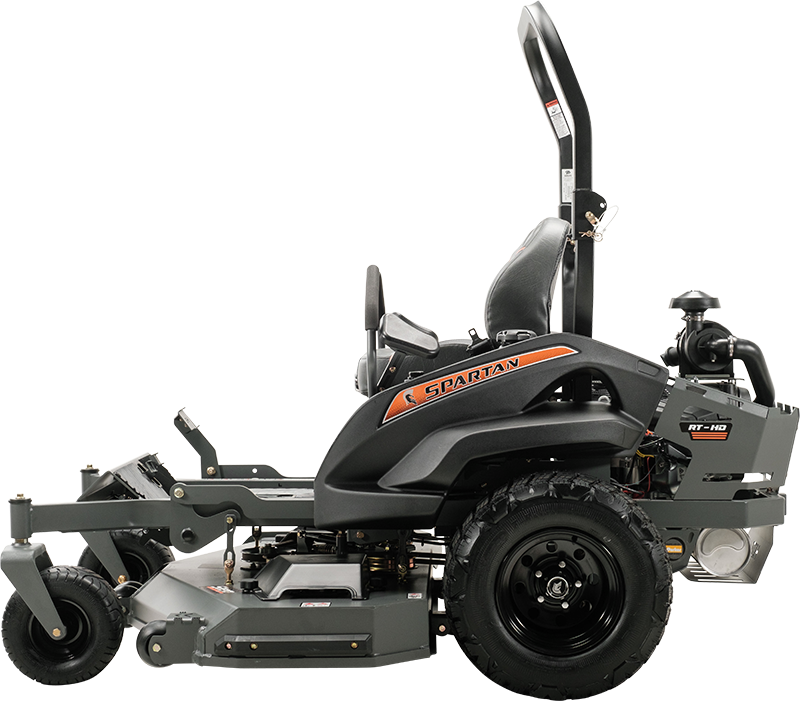

The RT-HD’s conventional design possesses four of the five layers as standard equipment: Radial Tires, TecsPak® adjustments from 100-300 pounds, 360-degree Seat Platform Dial Adjustable Suspension Seat. Three mower widths, 54″, 61″ and 72″, and three strong engine options make this Spartan’s best value zero turn commercial mower.
Take a test drive today in Stockyards City or ask about our Try Before you Buy program!
Front & Rear Radial Tires
TecsPak® Underseat
360 Degree Seat Plate
LED Light Kit
3” Adjustable Seat
4 Bearing Spindles
Adjustable Steering Arms
6” Deep Deck
11 mph Top Speed
18,500 FPM Blade Tip Speed
ENGINE
Engine Name
Kawasaki FX-801V, Vanguard, Vanguard Big Block
Horsepower
25.5HP, 26HP, 36HP
Fuel Capacity
9.5gal
DRIVE LINE
Hydraulic Drive
Parker HTJ 12cc wheel motors.
Hydraulic Drive Torque
Continuous: 3,140 in/lb | Max Torque: 4,870 in/lb
Hydro Drive Maintenance
1,000 hours between oil change
Drive Tires
54″ – 24×10.50-R12 Radial | 61″ – 24×12-R12 Radial
Front Tires
13×6.5-R6 Radial
Wheels Type
Steel
Speed (F/R)
Forward – Up to 11mph | Reverse – Up to 5mph
FEATURES
Seat
Full Suspension Seat with Adjustable TecsPak Elastomer supports and 360 degree Floating Seat Platform
Steering Levers
Soft Touch Knobs to Adjust Forward and Back. Adjustable Up and Down
Control Panel LCD Display
Engine hour meter, Mower deck hour meter, Tachometer, Low level warning volt meter Time between oil change countdown, Fault codes
Control Panel LED Warning Indicators
Parking brake set, Drive levers, Operator present, PTO, Low/Hi battery volts, Low oil PSI
Ignition
Key-less, enter personal code to start
Auxiliary Power
12 Volt outlet next to phone holder
Storage
Phone holder, cup holder and deep storage tray
Hitch
2” Rear Receiver Standard
CUTTING DECK
Deck Sizes
54”, 61” & 72”
Deck Depth
6” Deep, Full-floating deck
Deck Lift
Foot operated with shock assist. Optional push-button electric
Deck Adjustment
Change-on-the-go Precision Deck Height Dial
Cut Height
1.125″ to 4.5″ with 15 Cut Heights in Between
Blade Spindles
Cast aluminum, no maintenance/sealed four ag bearings
Parking Brake
Foot operated
Frame
1.5”x3” Powder Coated Fusion-Bonded Solid Steel Bridge Frame
MEASUREMENTS
Width
54” Deck: 55.5” wide | 61” Deck: 62.5” wide | 72” Deck: 73.5” wide
Weight
54” – 1108lbs | 61” -1131lbs | 72” – 1170lbs
Length
84”
Height
75” with ROPS up (54” Folding ROPS Down)
WARRANTY
Engine Warranty
3 Years
Full Warranty
3 Year / 500 Hours Residential – 2 Year / Unlimited Hour Commercial – 120 Day Belt Warranty
Deck Warranty
Lifetime on the leading edge. See full warranty for disclosure and restrictions
Hydraulic Drive Warranty
3 Year / 1,500 Hour Warranty
Control Panel Warranty
3 Years
