Newport NK300 HD Electric Kayak Motor

The Newport NK300 HD Electric Kayak Motor is a high-performance 3HP-equivalent brushless motor designed specifically for kayak anglers who demand reliability, efficiency, and quiet operation on the water. Built as part of Newport’s Heavy Duty (HD) Series, the NK300 HD features reinforced steering, a redesigned retract system, and upgraded communication connectors for long-lasting durability.
Powered by a 1300W brushless direct-drive motor, the NK300 HD delivers smooth acceleration, strong thrust, and ultra-quiet performance—producing only around 40 decibels of sound. This maintenance-free system eliminates the need for fuel or complex servicing, making it an ideal solution for modern electric kayak setups.
The motor operates on a 36V external battery system (battery not included) and includes a digital speed controller with display, giving you real-time performance control while navigating rivers, lakes, or coastal waters.
Key Features

1300W Brushless Motor (3HP Gas Equivalent)

Heavy Duty NK HD Series Construction

Ultra-Quiet Operation (~40 dB)

Maintenance-Free Direct Drive System

Digital Speed Controller with Display

Reinforced Steering and Retract System

Durable 9.8″ Composite Propeller

Technical Specifications

Power: 1300W (3HP equivalent)

Voltage: 36V DC

Amp Draw: 37A

Motor Weight: 25.5 lbs

Shaft Length: 21.7″

Propeller: 9.8″ 2-Blade Composite

Trim/Tilt Angles: 0°, 7°, 14°, 21° / 70°

Motor Type: Brushless Direct Drive

What’s Included

NK300 HD Motor

HD Steering Triangle

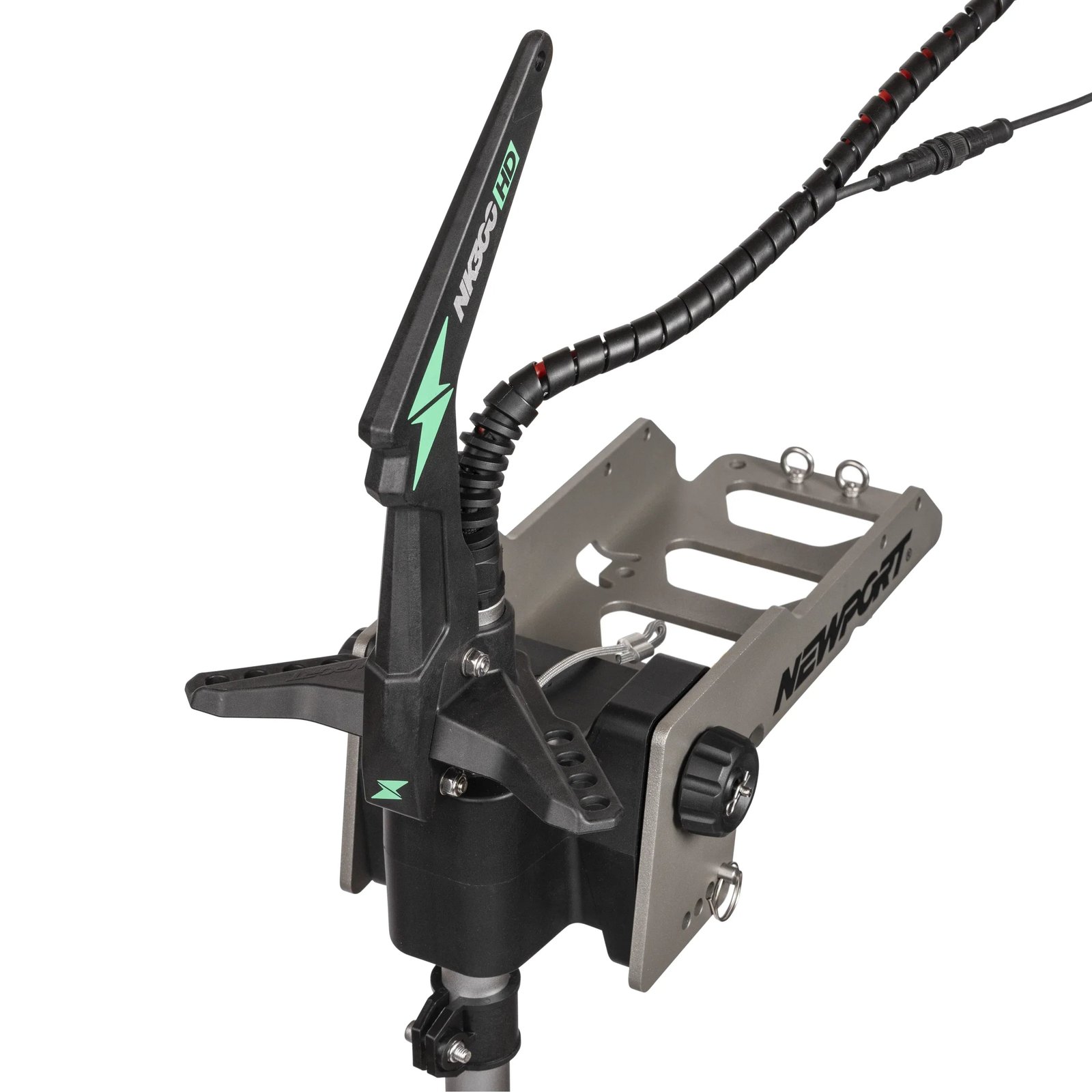

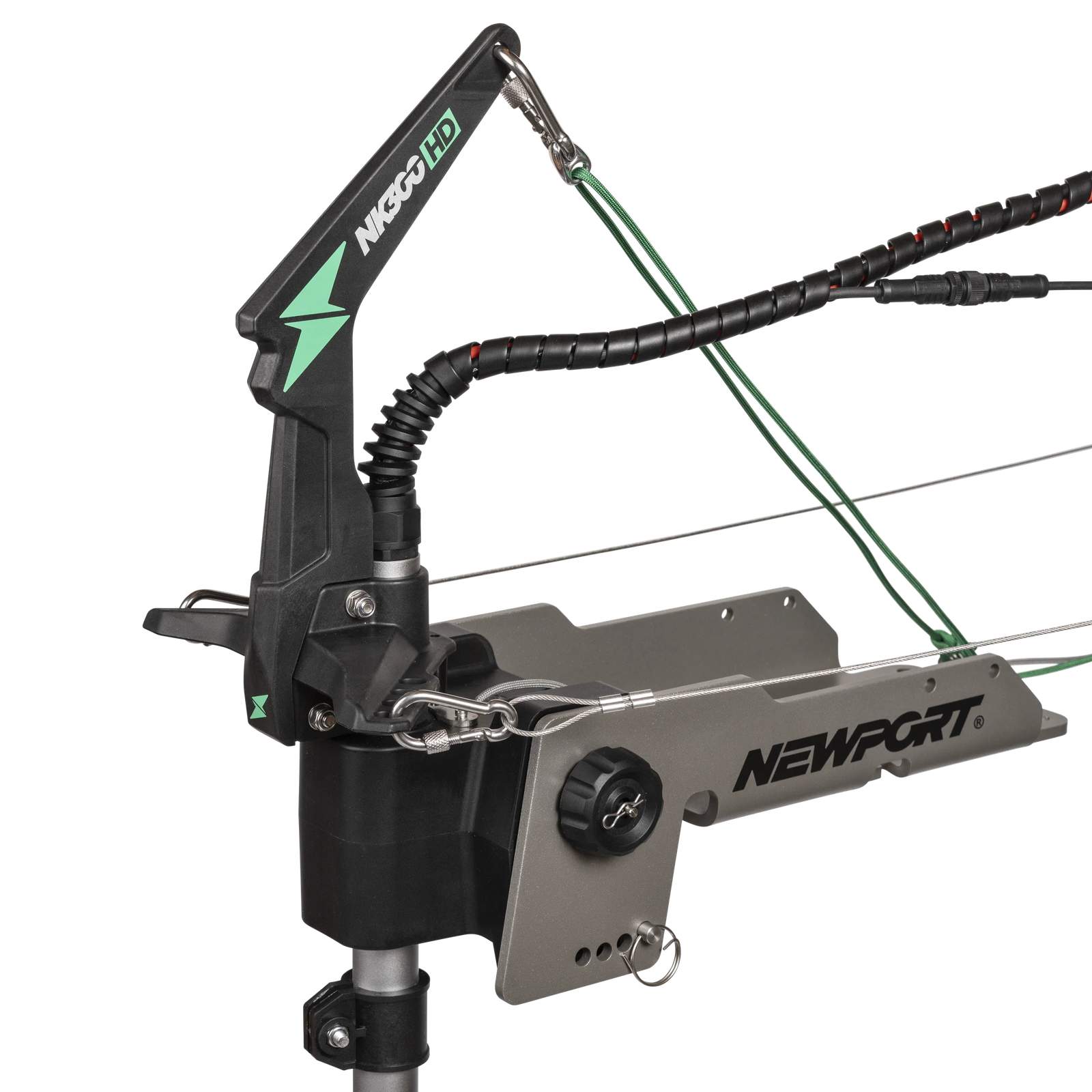

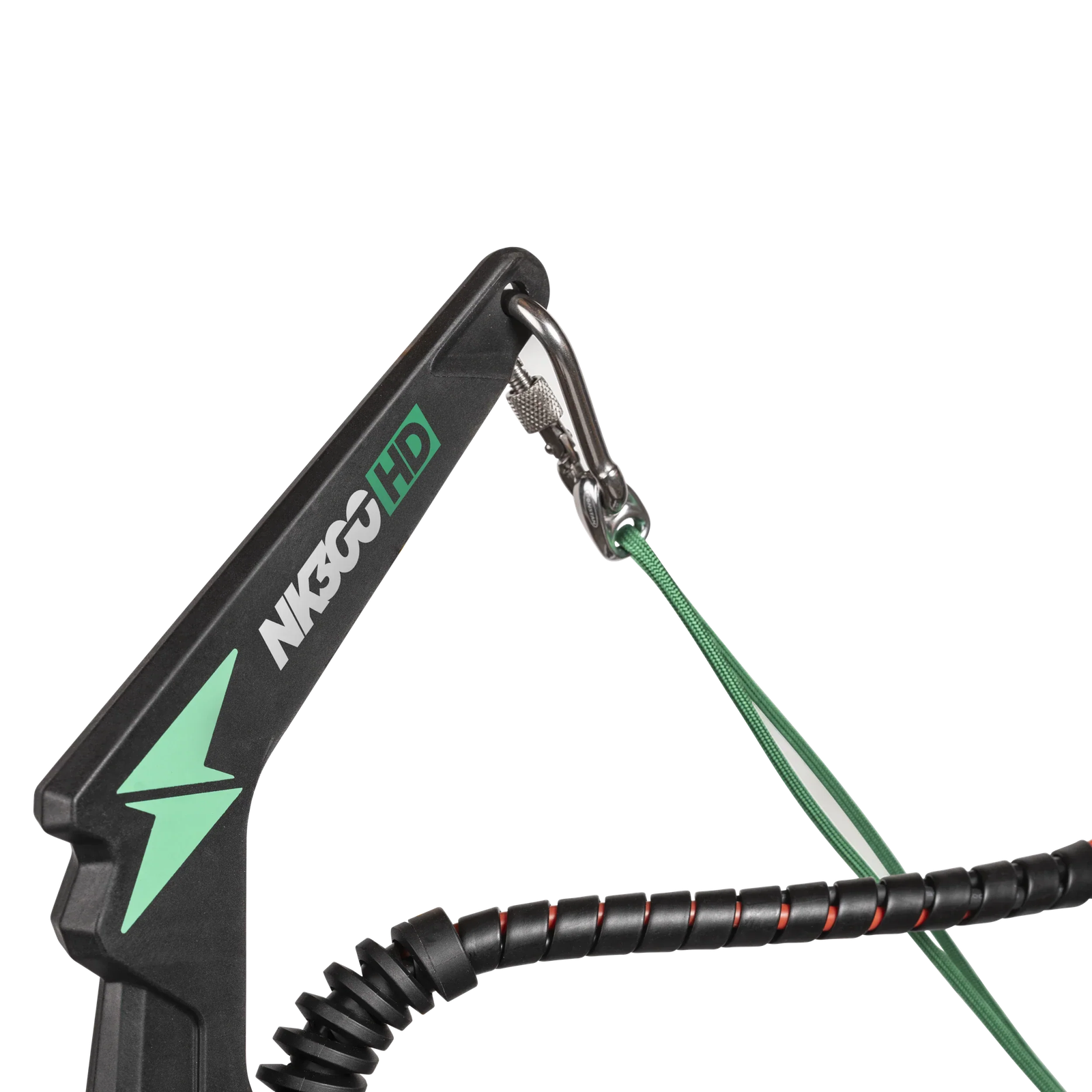

HD Retract Arm with Stainless Carabiner & Ronstan Block

HD Communication Cable with M12 Connectors

Digital Speed Controller with Display

Aluminum Motor Mounting Bracket

Height Adjustment Clamp

Reverse Control Line & Motor Lift Control Line

Emergency Stop Key

Steering Cable Kit & Installation Hardware

⚠ Note: External 36V battery (minimum 30Ah) required and not included.
