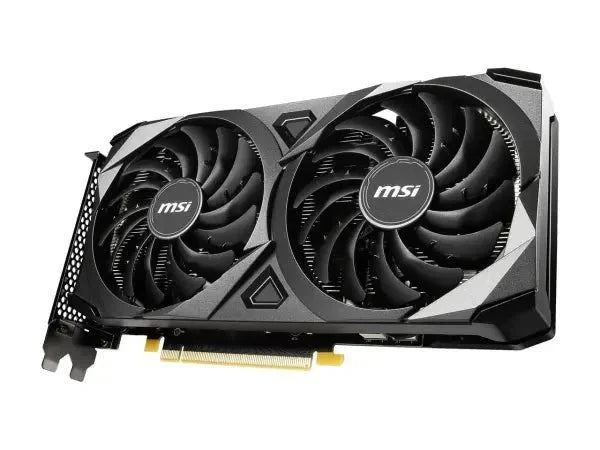

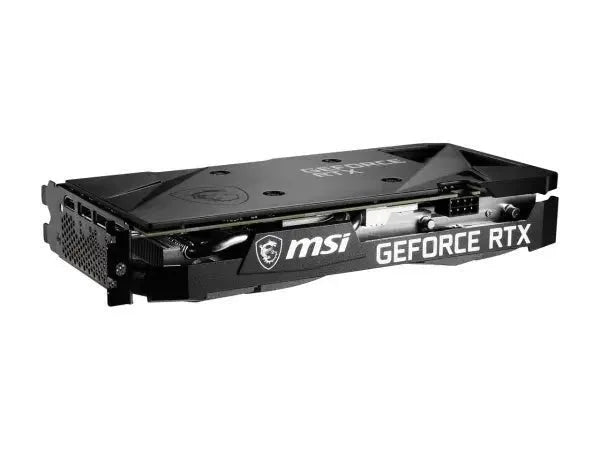

MSI GeForce RTX™ 3060 Ventus 2X 12G OC Graphics Card
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3060
Integrated with 12GB GDDR6 192-bit memory interface
MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Features
Afterburner Take full control with the most recognized and widely used graphics card overclocking software in the world.
Dual Fan Two fans and a huge heatsink ensure a cool and quiet experience for you.
TORX FAN 3.0 The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Zero Frozr Zero Frozr is the calm before the storm, keeping fans still and maintaining silence until cooling is needed.
Custom PCB The custom PCB has been engineered with hardened circuits and optimized trace routing for performance and reliability.
Thermal Padding An abundance of thermal pads use any chance for additional heat transfer directly from the components.
Dragon Center MSI’s exclusive Dragon Center software lets you monitor, tweak and optimize MSI products in real-time.
System Requirements
Supported OS: Windows 7 64-bit, Windows 10 64-bit
PCI Express x16 Slot
1 x 8-pin PCI-E Connectors
550 Watt or greater power supply
Specifications
Make and Model
MSI GeForce RTX™ 3060 Ventus 2X 12G OC Graphics Card
Part Number
GeForce RTX 3060 Ven
Chipset
NVIDIA® GeForce RTX™ 3060
Architecture
Ampere
CUDA Cores
3,584
Boost Clock
1807 MHz
Memory
12GB GDDR6
Memory Speed
15 Gbps
Memory Bandwidth
360 GB/s
Memory Interface
192-bit
Digital Max. Resolution
Digital Max Resolution 7680 x 4320
OpenGL
OpenGL®4.6
HDCP Compliant
HDCP 2.3
Bus Interface
PCI Express 4.0
NVlink/ Crossfire Support
None
Fan
2
Max. Display Support
4
Connectors
DVI
None
HDMI
x 1 (Native HDMI 2.1)
DisplayPort
x 3(Native DisplayPort 1.4a)
USB
None
Recommended PSU
550
Power Consumption
170W
Power Connectors
1 x 8-pin PCI-E Connectors
Dimensions
235 x 124 x 42 mm
Weight
675g

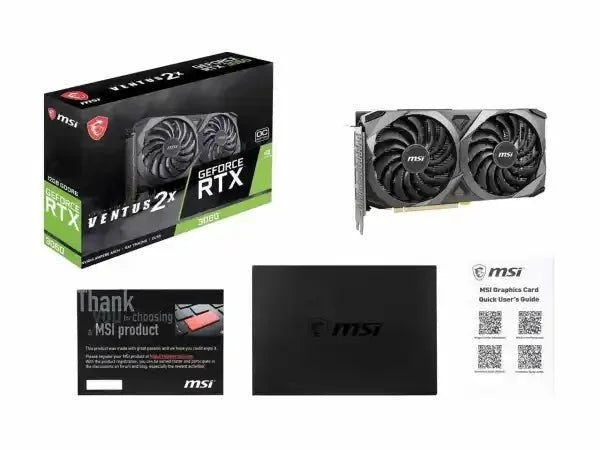

Package Contents
MSI Graphics Card
Users Manual
