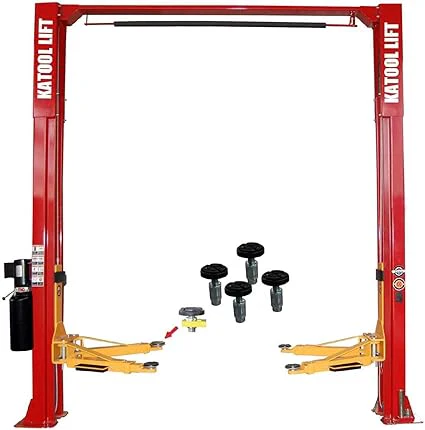

This M110 two-post clear floor vehicle lift by KaTool can handle up to 11,000 lbs, making it a reliable choice for heavy vehicles. With a clear floor design, it allows for easy access and maintenance. Trust this lift to efficiently and safely lift your vehicles.
Key Features:
11000lbs lifting capacity.
CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
Symmetric clear-floor design.
Manual safety release from two sides.

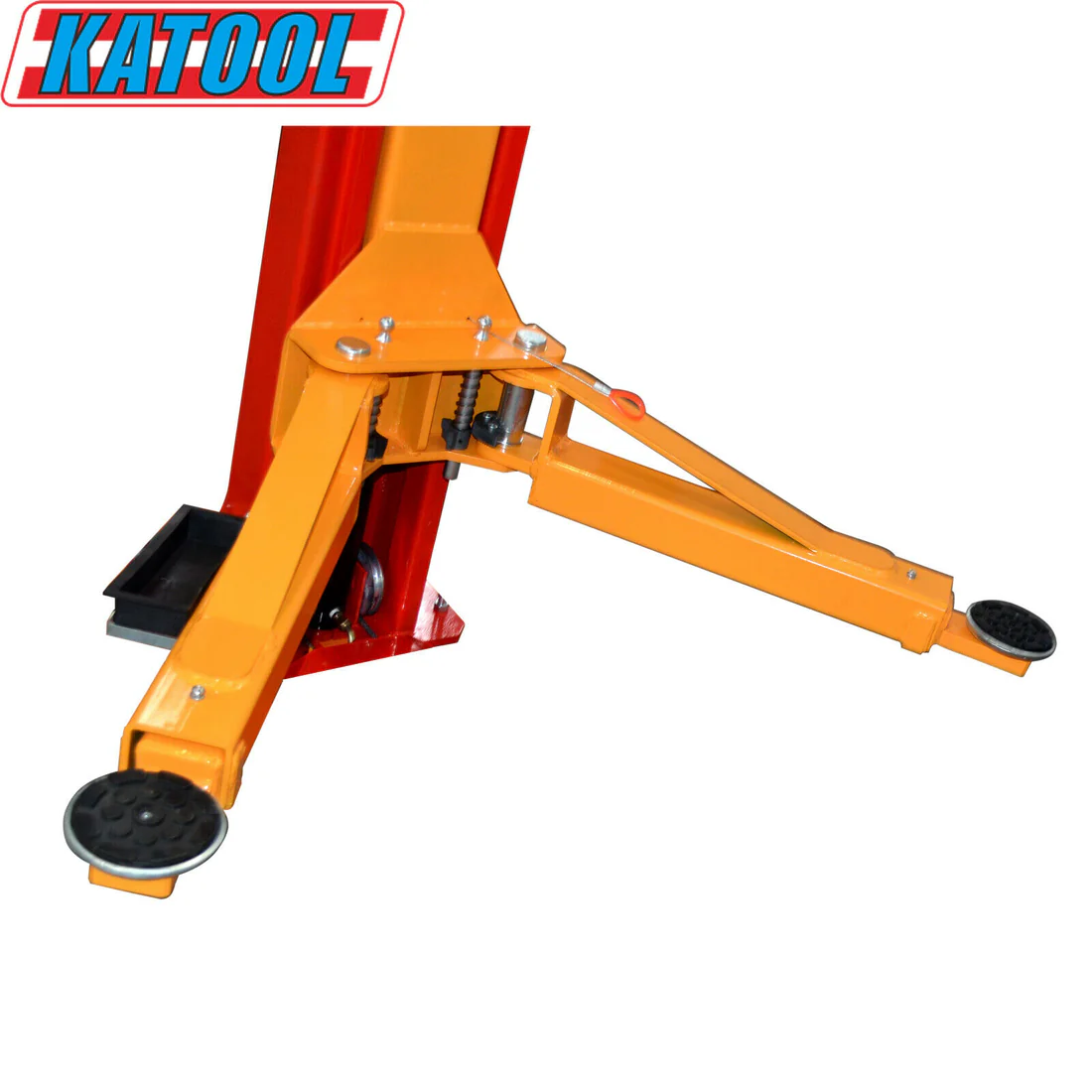

Symmetric arm.

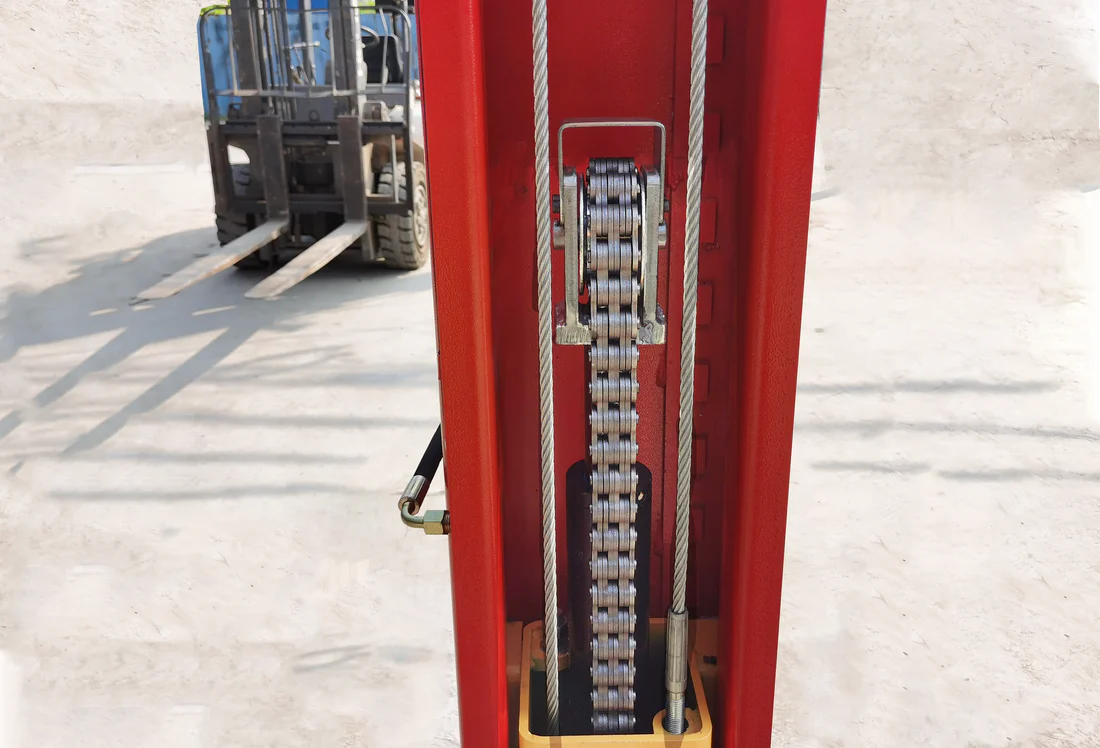

Dual Hydraulic Chain-Drive Cylinders.
Rubber pad door opening protection.
It comes with extension support adaptor sets of +30mm and +120mm.
Added overhead safety shutoff bar.
Feet-protection safety guardrails with a toolbox.
Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH(Optional).
Specifications:
Lifting Capacity
11000lbs.(5000KG)
Max. Lifting Height
70.75″/1800mm
Min. Height
4.25″/110mm
Height Overall
141.25″/3587mm
Width Overall
142.25″/3614mm
Outside Column
128″/3250mm
Inside Column
110.25″/2800mm
Dirve-Thru Clearance
94.5″/2400mm
Front Arm Reach (Min)
30.75″/780mm (2 stages)
Front Arm Reach (Max)
50.5″/1280mm (2 stages)
Rear Arm Reach (Min)
30.75″/780mm (2 stages)
Rear Arm Reach (Max)
50.5″/1280mm (2 stages)
Motor
220VAC/60HZ/1PH/2.2KW
Net Weight
1367lbs/620KG
