Overview

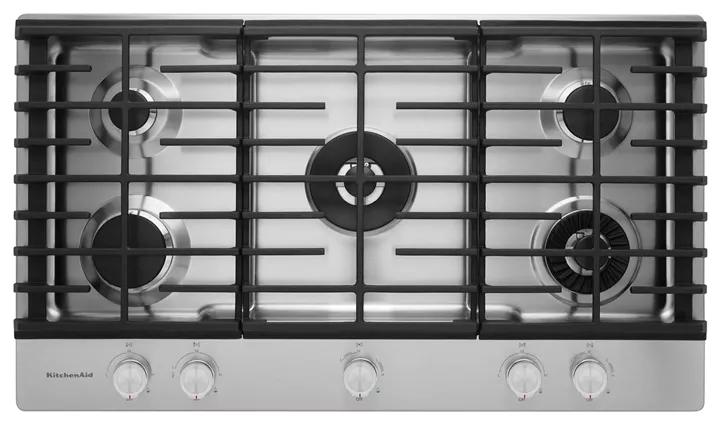

36″ 5-Burner Gas Cooktop with Griddle
Five burners and a removable griddle give this 36-inch gas cooktop the power and versatility challenging recipes demand. The 20,000 BTU Professional Dual Ring Burner is among the most powerful in the industry, and our innovative Even-Heat™ Torch Burner provides even coverage to ensure proper heating without scorching. Multi-Finish Knobs and the scratch-resistant CookShield Finish help protect the surface against stains that may occur with high-temperature cooking.
Exterior Details
Knob Color
Stainless Steel – Lighted Knobs
Knob Type
Metal
Cooktop Details
Combination Match with Oven
KOES527P, KOES530P, KOSC104FSS, KOSC504, KOSE500, KOSE507, KOSE900, KOST100, KOST107
Cooktop Selections
Automatic Reignition, Simmer
Cooktop Surface Color
Color Coordinated
Cooktop Surface Material
Stainless Steel
Griddle Included
Included
Heating Element On Indicator Light
Yes
Hot Surface Indicator Light
No
Ignition Type
Direct Spark Ignition
Installs Over Built-In Oven
Yes

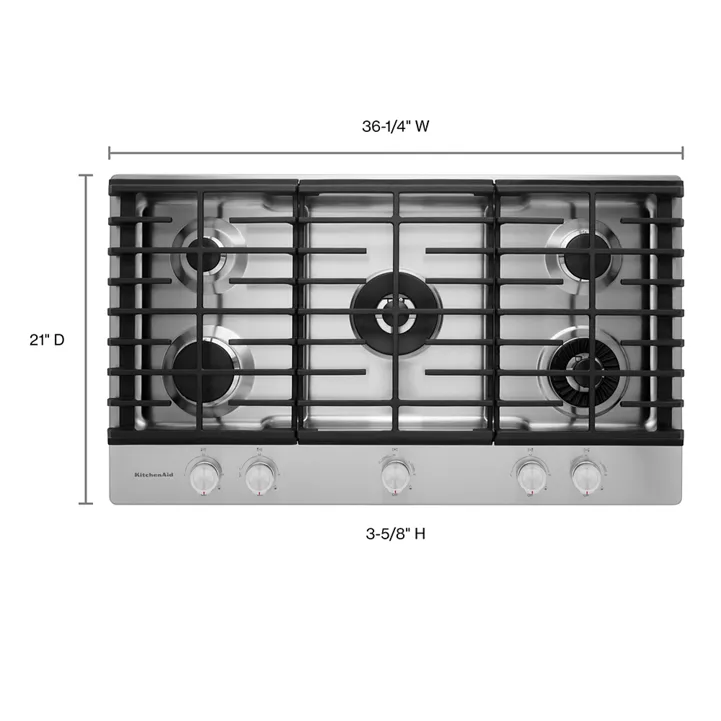

Dimensions
Common Size
36 in
Cutout Depth
19-813/1000 in
Cutout Depth Max
20 in
Cutout Height
5-1/4 in
Cutout Width
35-47/250 in
Depth
21 in, 21 in
Gross Weight
74 lbs, 74 lbs
Height
3-11/16 in, 3-11/16 in
Maximum Height
4-2969/5000 in
Net Weight
0 lbs, 0 lbs
Width
36-1/4 in, 36-1/4 in
Grate Details
Grate Details
Cast Iron Grates, Continuous, Dishwasher Safe, Matte Finish
Element/Burner Details
Automatic Pan Detection
No
Center Rear Element-Burner Power
20,000 BTU
Center Rear Element-Burner Type
Professional Dual Tier
Cooktop Element Style
Sealed Burner
Cooktop Type
Standard
Left Front Element-Burner Power
12,000 BTU
Left Front Element-Burner Type
Burner
Left Rear Element-Burner Power
6,000 BTU
Left Rear Element-Burner Type
Simmer
Number of Cooking Element-Burners
5
Number of Grates
3
Power Boost
No
Right Front Element-Burner Power
10,000 BTU
Right Front Element-Burner Type
Even-Heat™
Right Rear Element-Burner Power
7,000 BTU
Right Rear Element-Burner Type
Burner
Controls
Control Location
Front
Control Type
Knobs
Details
Digital Display
No
Fuel Type
Gas
LP Convertible
Yes – Kit Included
Power Outage Compatible
Yes
Ventilation Details
Downdraft Vent
No
Electrical
Amps
15
Hz
60
Power Cord Included
Yes
Volts
120
Features
Cooktop Features
20K BTU Dual-Ring Burner, ADA Compliant, Cookshield Finish, Even-Heat Melt Burner, Torch Burner
