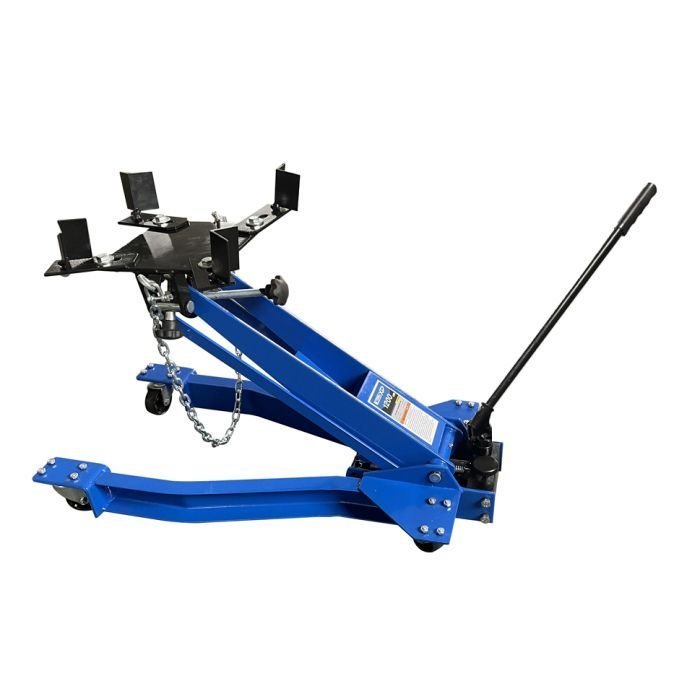

K Tool Low-Profile Transmission Jack

The K Tool Low-Profile Transmission Jack is ideal for those that have limited space under the vehicle. The fully adjustable head plate can be tilted forward, backward, and side to side for the convenience of removal of transmissions. Steel wheels and full swivel ball-bearing casters allow for easy movement while under the vehicle. A load-restraining chain is provided for additional safety during raising and lowering.
Features

Removal, Installation, and Moving of Heavy Truck Transmissions
Built-In By-Pass System Prevents Ram from Over Extension
Meets or Exceed ASME PASE 2019 Standards
Wide Front Open Chassis for Lower Profile When Loaded
Universal Adjustable Saddle with Four Brackets
Load Restraining Chain
Full Swivel Pump Handle
Controlled Lowering with Release Valve
Steel Wheels and Full Swivel Ball Bearing Casters

Specifications

Capacity: 1,200 lbs.
Max Height: 31.5″
Min Height: 7″
Travel: 24.5″
Saddle Tilt: +/-10°
Max Lifting Head Size: 15-1/2″ x 15-1/2″
Chassis Length: 33″
Overall Width: 19.7″
Weight: 130 lbs.
Warranty: 1 Year
