OVERVIEW

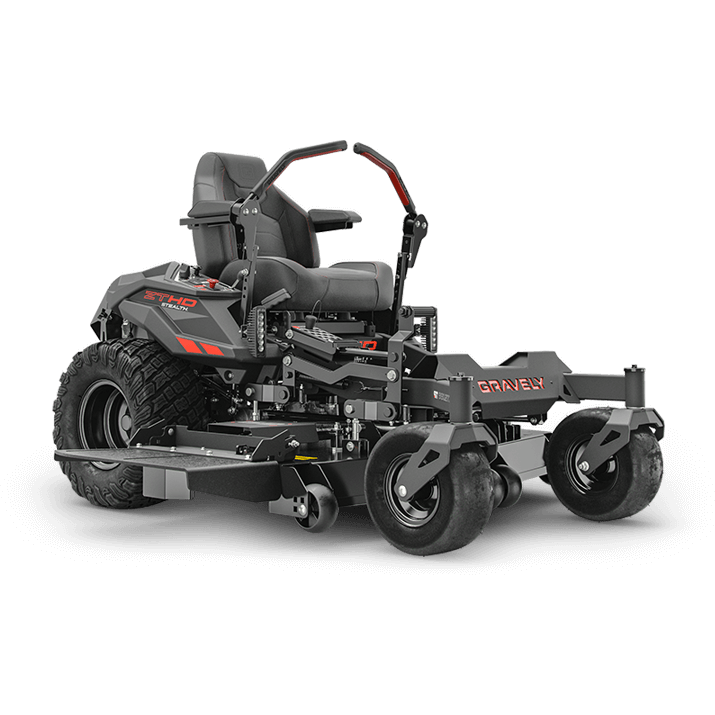

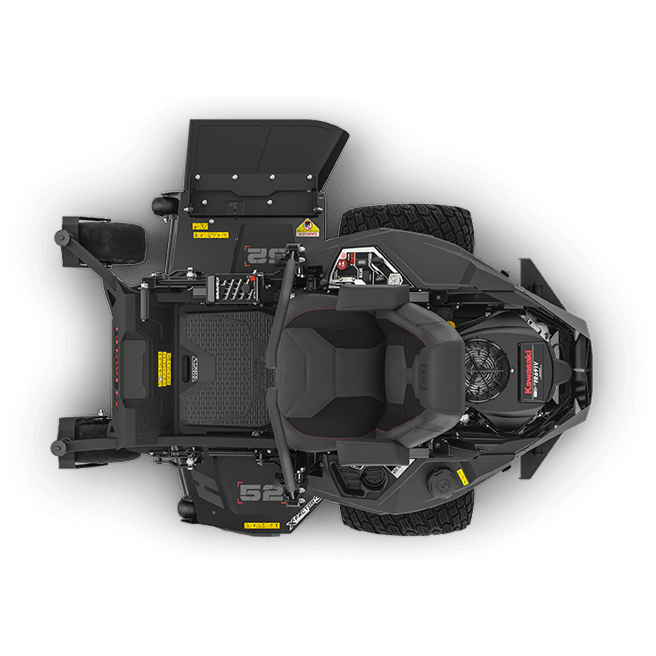

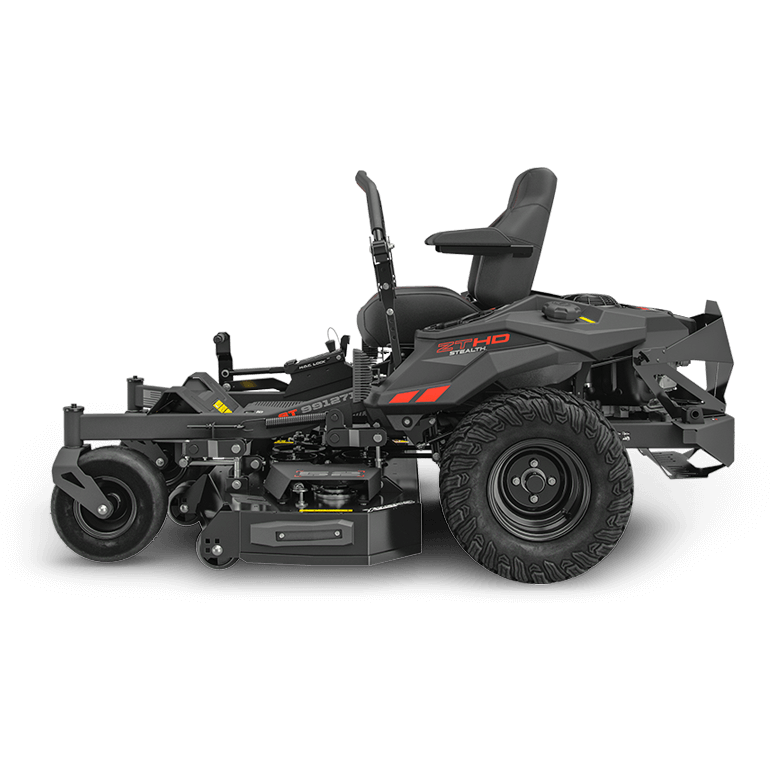

It cuts to the beat of its own drum, turning its blades up to conformity. It looks different because it is different. And different is good. Introducing the latest entry to our STEALTH line of mowers, the ZT HD STEALTH. A bold, military-influenced design built with Gravely’s legendary ingenuity and craftsmanship. This mower is finally ready for takeoff.
ENGINE
Kawasaki® FR691V
ENGINE DISPLACEMENT
44.30 in / 726.00 cc
DRIVE SYSTEM
Hydro-Gear® ZT-3100® Transaxles
TRANSMISSION TYPE
Hydrostatic
BRAKE TYPE
Lever Activated Parking
FUEL SYSTEM
Gas
FUEL CAPACITY
5.10 gal / 19.30 ltr
DRIVER POSITION
Sit
GROUND SPEED FORWARD
8.00 mph / 5.00 kph
GROUND SPEED REVERSE
4.00 mph / 2.50 kph
BATTERY CAPACITY
190 CCA
NUMBER OF BATTERIES
1
BATTERY VOLTAGE
12
BATTERY TYPE
AGM
BATTERY SIZE
U1 Compatible
DECK SIZE
52 in / 132.10 cm
COVERAGE HOUR
4.20 acres / 1.70 hectares
SPINDLE TYPE
Mechanical
DECK MATERIAL
10 ga
DECK CONSTRUCTION
Fabricated X-Factor® 3
DISCHARGE CONFIGURATION
Side
CUTTING WIDTH
52.00 in / 132.10 cm
REAR WHEEL DIAMETER
22.00 in / 55.90 cm
REAR WHEEL WIDTH
11.00 in / 27.90 cm
REAR WHEEL RIM DIAMETER
12.00 in / 30.50 cm
FRONT WHEEL DIAMETER
13.00 in / 33.00 cm
FRONT WHEEL WIDTH
6.50 in / 16.50 cm
WEIGHT
819.00 lb / 371.40 kg
LENGTH
79.00 In / 200.70 cm
