The AV9 Wheel Alignment Machine by Ka Tool works seamlessly on both two post and scissor lifts, providing precise and accurate alignment for your vehicle. With its advanced technology, it ensures optimal performance and safety for your vehicle. Invest in the AV9 for a smoother and safer ride.
Key Features:

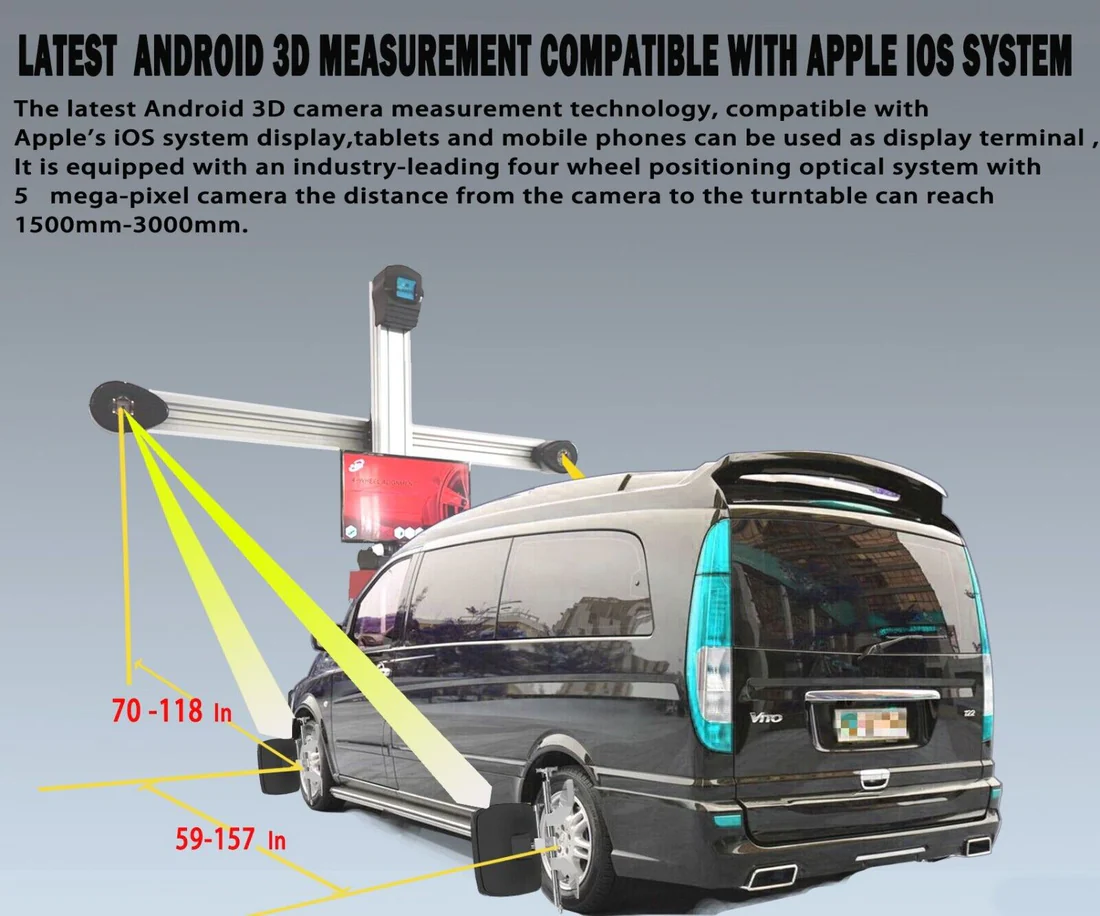

Mobile 3D Wheel Aligner for Lift Application
Unlimited memory for vehicle specifications
No calibration during installation
Includes tablet and a 30inch display screen, mouse and keypad, and a printer
Complementary wifi device and USB drive
Uses Android and IOS systems for the software, minimizes the need for software and system maintenance
Synchronous Display on Smart Phone and Pad
The client can read the alignment operation on the smart device during the service
During rear wheel adjustment, the engineer can check data changes on a smartphone easily
The post moves with a remote control, which makes it easy to track the height of the vehicles.
Free database upgrades yearly
The database includes the most recent car models from all US, European and Asian brands.
Specifications:
Power Supply
100-240V,50/60 HZ,1 Ph
Working Temperature
41F…104 F(+5℃…+40℃)
Cameras (Total)
2
Tire Diameter
9 27/32-31 1/2 in(250-800 mm)
Wheellbase
62 63/64 -82 43/64 in(1.6-2.1m)
Track Width
70 55/64-177 11/64 in(1.8 -4.5 m)
Warranty
1-Year Limited
Product Weight
440.92 Ibs(200 kg)
Shipping Weight
529.11 Ibs(240 kg)
Shipping Dimensions
39.76×36.61×48.47 in(1010x930x1230mm)
110.24×15.75×15.75in(2800x400x400mm)
