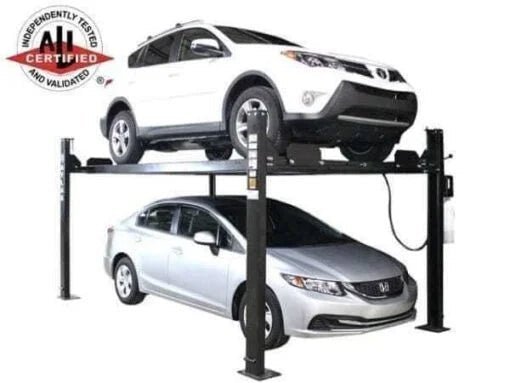

Atlas Apex8 8,000 lbs 4 Post Lift

The Atlas APEX8 is an ALI-certified version of the Atlas Garage PRO8000. Perfect for the customer with too many cars and not enough space. The APEX8 allows the user to easily double their space by stacking most passenger cars.
The Atlas APEX8 is designed and built for use by homeowners or restoration shops. This lift is not recommended for use in commercial repair shops where it would be raised and lowered several times per day.
The Atlas APEX8 is nearly 200 lbs. heavier than comparable lifts in the market. It includes a free caster kit with polyurethane wheels.
The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. With those features and with the added peace of mind of the ALI Certification the APEX8 is one of the best values in Atlas’s four-post hobbyist product line.
Many customers who purchased this lift also purchased the Atlas RJ35.
Features & Benefits
ALI Certified Lift
8,000 lb. Capacity
Free Standing/Portable Design
Powder Coat Finish
Single Point Lock Release
Lock Ladder Design
Double Lock Safety System
Steel Approach Ramps Included
Wheel Stops Included
Two Wheel Chocks Included
Caster Kit with Polyurethane wheels Included
Anchor Bolts Optional (Sold Separately)
Perfect for Storage or Working on Vehicles
110volt Electric Operation (Requires 30amp Breaker)
5 yr Structural – 2 yr Hydraulic Warranty
Atlas Apex 8 Specifications
Capacity
8,000 lb.
Lifting HeightTo Top Of Runway
72″ (6′)
ClearanceUnder Runways
67″ (5′ 7″)
Height of Columns (Including Nuts)
86 5/8″ (7′ 2 5/8″)
Overall Width(Without Motor or Casters)
104″ (8′ 8″)
Overall Width (With Motor)
114″ (9′ 6″)
Overall Length without Approach Ramps (Including Lock Release Bar)
186 1/2″ (15′ 6 1/2″)
Overall Length with Approach Ramps
207 5/6″ (17′ 3 5/6″)
Approach Ramps
37 1/2″ (3′ 1 1/2″)
Runway Width
18 2/3″
Runway Rail Width
2 1/2″
Runway Length
169 1/2″ (14′ 1 1/2″)
Runway Thickness
4 1/3″
Width Between Runways
38″ (3′ 2″)
Width Between Runway Rails
33 (2′ 9″)
Outside Runway To Outside Runway
75 1/4 (6′ 3 1/4″)
Clearance Between Columns
94″ (7′ 10″)
Length Between Columns
157 1/3″ (13′ 1 1/3″)
Maximum Wheel Base
154 (12′ 9″)
Drive Thru (Outside Of Tire To Outside Of Tire)
80 1/4″ (6′ 8 1/4″)
Motor/Electrical Requirement
110 Volt, 30 AMP BREAKER REQUIRED
