6,000-lb. Capacity / Mid-Rise Scissor Lift / Open-Center

‘
BendPak MDS-6LP Mid-Rise Open-Center Lift
The BendPak MDS-6LP is a high-performance mid-rise open-center scissor lift, designed for superior accessibility and efficiency. With a 6,000 lb. lifting capacity, longer platforms, and an extended lift point spread, this lift provides a secure and stable lifting experience for a wide variety of vehicle types, including those with longer wheelbases.
Unlike conventional scissor lifts that struggle with low-clearance vehicles, the MDS-6LP features a pivoting kicker mechanism, delivering extra lift force during the first six inches of movement. This ensures smooth and reliable lifting from a fully collapsed position.
This mid-rise lift is perfect for repair shops and garages seeking a compact yet powerful lifting solution. Its removable approach ramps allow for a flush-mount setup, giving more working space around the vehicle when needed.
Key Features & Benefits

6,000 lb. Load Capacity – Lifts most cars, SUVs, and light trucks.
Open-Center Design – Provides easy access to undercar components.

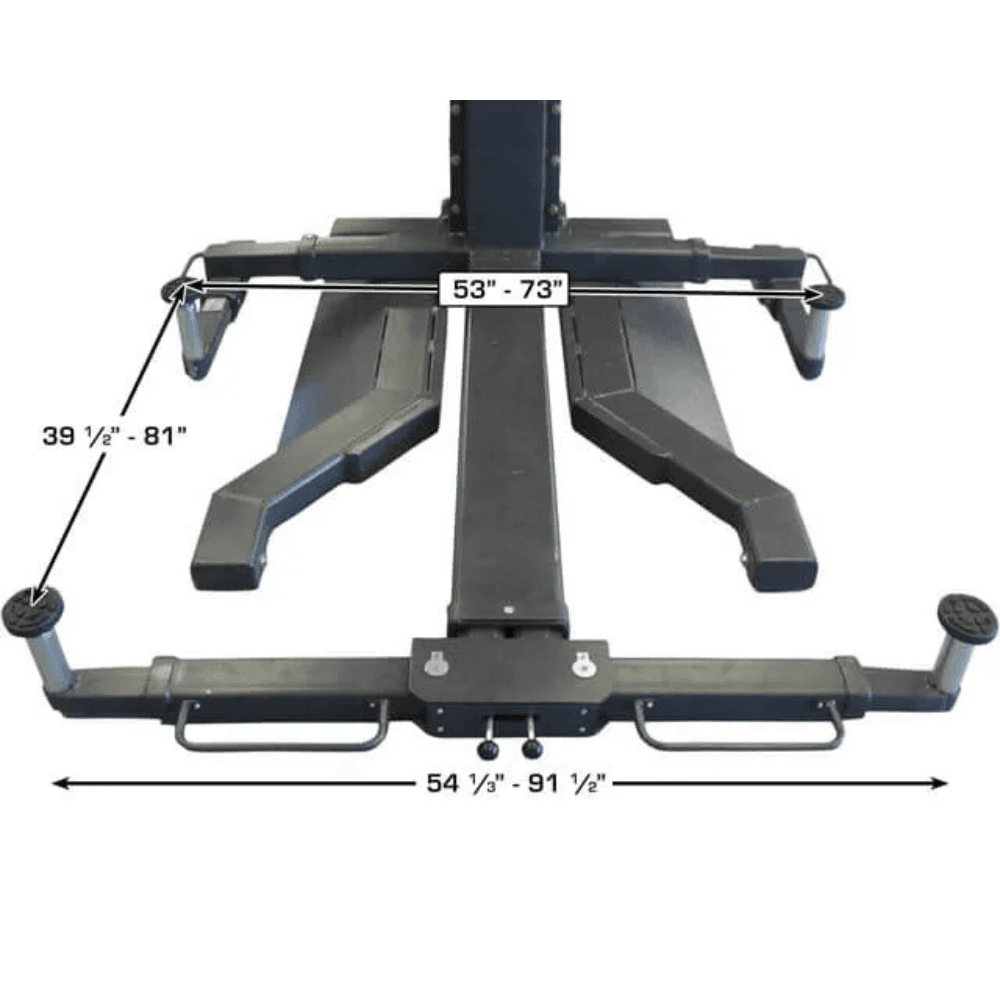

Extended Lift Point Spread – Safely accommodates long wheelbase vehicles.
Four Solid Steel-Scissor Support Bars – Among the strongest mid-rise lifts available.
Dual Master Hydraulic Cylinder – Ensures level, stable lifts with equalizing cylinders.
Solid-Steel Safety Lock Bars – Engage automatically during ascent for added safety.
Stainless-Steel Pneumatic Cylinders – Enable simultaneous safety lock release.
Push-Button Safety Lock Release – No manual handles or bars required.
Pivoting Kicker Mechanism – Offers extra lift force for low-clearance vehicles.
Removable Approach Ramps – Converts to flush-mount mode for improved workspace.
Compact Design – Ideal for garages with limited floor space.

Technical Specifications

Specification
Measurement / Detail

Lifting Height (Min.)
5 in

Lifting Height (Max.)
35 in

Length
70 in

Width
67 in

Load Capacity
6,000 lbs.

Voltage Requirement
208–240V

Air Requirement
Min. 50 psi, 10 CFM at installation

Why Choose the BendPak MDS-6LP?
The BendPak MDS-6LP is a must-have for professionals and automotive enthusiasts needing a versatile, space-saving mid-rise lift. Its advanced hydraulics, steel construction, and innovative features make it a top performer in its class, delivering reliable, level, and secure lifting across a wide range of vehicles.
Final Thoughts
The BendPak MDS-6LP is an innovative, high-performance lift offering exceptional strength, accessibility, and safety. Whether you’re doing wheel and brake work, undercar inspections, or general maintenance, this lift ensures optimal functionality in a compact footprint.
