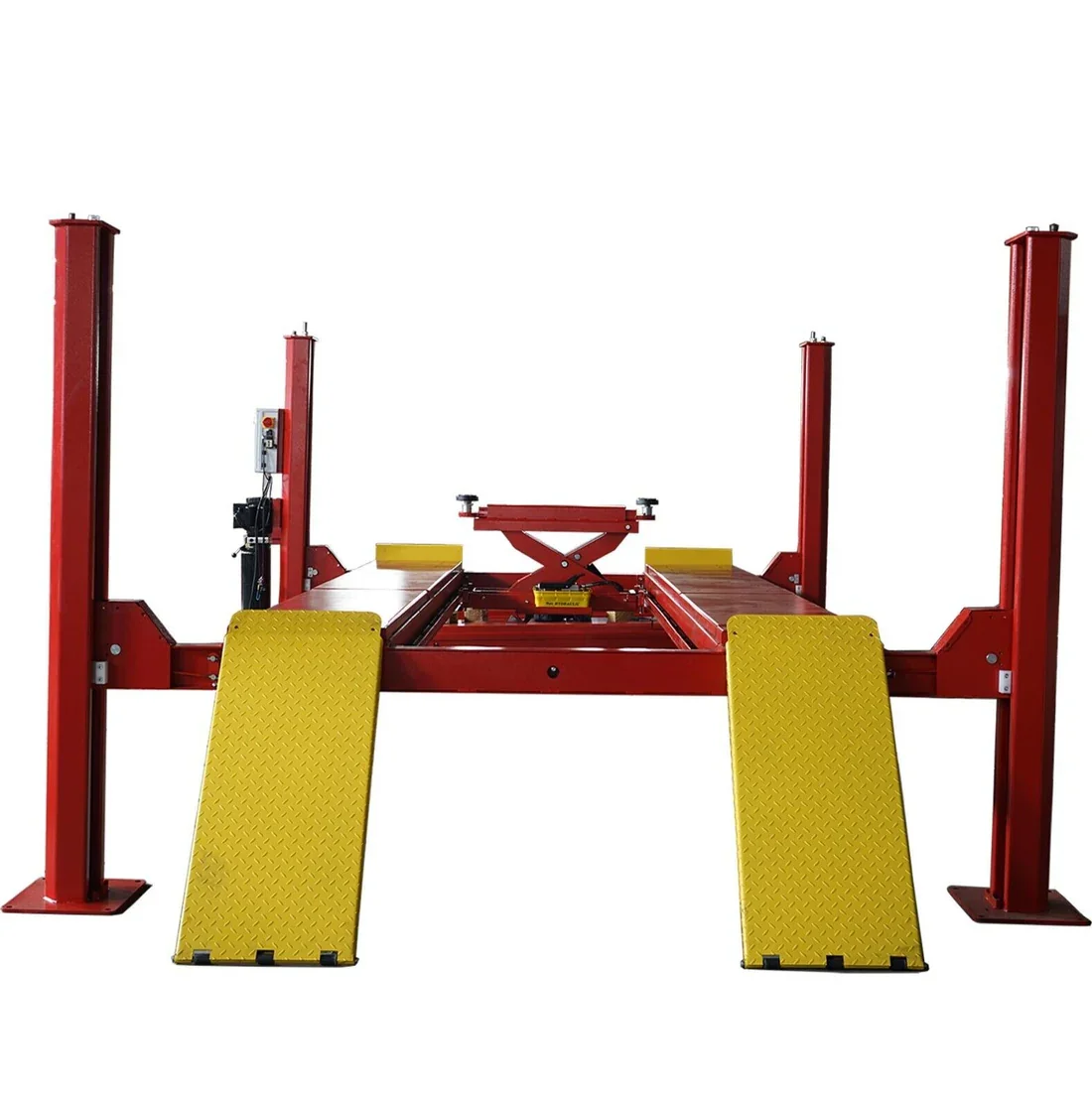

The 4H150 Heavy Duty 4-Post Alignment Lift by KaTool can easily handle up to 15000 lbs. Built with durability in mind, this lift is perfect for heavy-duty alignment tasks. Experience smooth and precise alignments with this professional-grade tool.
Key Features:
15000lbs lifting capacity.
CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
Spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.
Equipped with multiple adjustable height locking positions for variable height positioning. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously.
Power side column can be installed at both sides, front or rear.
Non-skid diamond texture ramps and non-slip coated runways.
One 6000 lb rolling jack is included.
High-quality hydraulic system, 3KW motor with 220V/60HZ/1PH or 110V/60HZ/1PH (Optional)
Specifications:
Lifting Capacity
15000 lbs
Max. Lifting Height
75″/1905mm
Lifting Time
95s Up / 55s Down
Height of Posts
86″/2184mm
Width Overall
136″/3454mm
Length Overall
208″/5283mm
Overall Length(with ramps)
245″/6223mm
Min. Runway Height
9″/228mm
Motor
220VAC/4PH
Net Weight
4450lbs
