30 Ton Skid Steer Flip Flop Log Splitter Attachment (SSFF30)

Product Description
Free Shipping!
If you want both configurations, splitting upside down (from inside the cab) or in the horizontal position (splitting outside the cab) then the Flip Flop model is for you. With 30 Tons of pressure, and the option to turn the unit 180 degrees, this will allow you to split your logs to any manageable size.

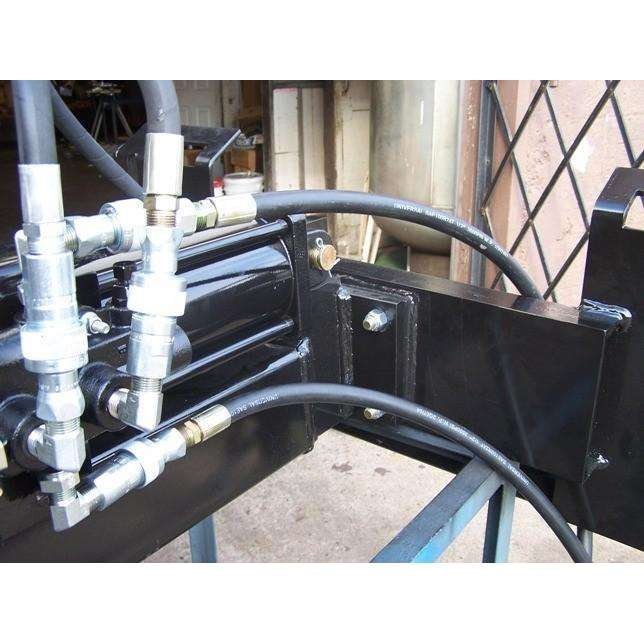

We use a series of quick disconnect couplers on the hoses to make the change over (adding the valve in the line of the hydraulic flow) so you can switch back and forth within minutes. To “flip” this unit you just have to undo the 4 bolts at the universal mounting plate and spin the beam 180 degrees and retighten the 4 bolts and your ready to split again.
Operating pressure of this splitter is only 2500 PSI so you can run your loader in idle and receive the maximum output of this wood splitter.  If you have a Case 1840 please inform us at the time of order as this has a different mount.
Please note: You can customize this log splitter.
You have two options:

4 Way Wedge – Split logs into 4 pieces. This 4 way wedge bolts on the slide of the beam. If ordered, you get both the single head wedge and the 4 way wedge.  4 way wedge will reduce opening size by 3″.
32″ Opening – Increase your opening size by 6 inches to a 5″ x 30″ cylinder to split longer pieces of wood. We also sell 5 x 36 skid steer log splitters, please see the SB 36 attachment.

Made in the USA!
See options above the big red “add to cart” button for pricing and pictures. When you select them it will built and price your splitter as you go! Questions? Feel free to contact us at 888-706-2434 for no hassle no pressure help and advice. We are here to help.
Please note these log splitters are delivered via freight truck. You will be responsible to take the crate off the back of the truck unless you select lift gate delivery as an option. Some assembly is required.
Detailed Specifications

Tonnage:
30 Ton (60,000 lbs)

Cylinder:
5″ x 24″

Opening Size:
25 Inch Opening Length

Beam:
6 x 3 Tubular Design / Flip Flop

Color:
Black Only

Mounting Plate:
Universal ( 2 quick attach lock handle type)

Weight:
550 lbs

Length:
78 Inches

Wedge:
Single 10″ High

Warranty:
1 Year

Hoses & Connectors:
Included – Flat Face Disconnects

Made in USA:
Yes!

4 Way Wedge:
Optional

30″ Stroke Cylinder:
Optional 5″ x 30″
