12 Ton Tractor 3pt Log Splitter (3PT12H)

Product Description
Free Shipping!

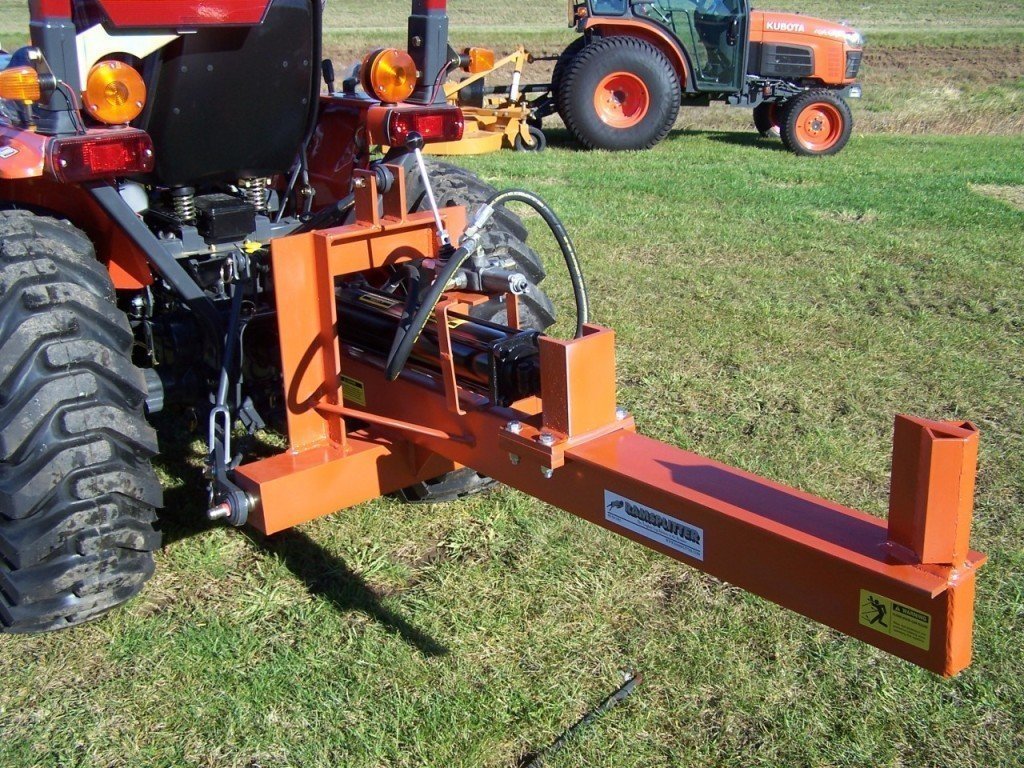

3 Point 12-Ton Horizontal Tractor Log Splitter
Our 12 ton wood splitter attachment for tractors are a perfect combination that gives you the low cost of using your existing tractor for driving the hydraulics. Just hook up to the auxiliary outputs of your tractor and you are ready to use this log splitter. The standard pins we use are category 1.
It is recommended that you have a flow rate of 5GPM or higher for this log splitter. If your tractor is not properly equipped you do have a choice to run the PTO kit which is self contained and includes a PTO pump. Please see the larger 3 point units for the feature.

Splits logs up to 20 inches long
“Deadman” switch stops the ram when the handle is released
Control Valve locks into return and auto-returns
Built in Relief valve protects the hydraulic system
Solid Rectangular Tube Design eliminates twisting and bending
Category 1 pins
ONE YEAR WARRANTY ON ALL PARTS, MADE IN THE USA!

This log splitter can also come in a horizontal / vertical configuration where you can split both horizontal or vertical. The log splitter looks the same but the beam will have the ability to flip upward and lock in the vertical position. The will eliminate the need for lifting the larger logs up on the beam. Please choose your option as to which one best suits your needs. The HV unit runs $105 extra.
Please note these log splitters are delivered via freight truck. You will be responsible to take the crate off the back of the truck unless you select lift gate delivery as an option. We are here to help. If you have any questions at all please don’t hesitate to give us a call.
Detailed Specifications

Beam Structure:
Tubular design 2″ wide x 5″ tall. 5″ Top plate reinforced heavy-duty

Splitting Wedge:
6″ High

Operating Position:
Horizontal (Horizontal / Vertical Optional)

Force / Tonnage:
12 Ton (Approx depending on tractor)

Cylinder:
3″ x 18″

Cycle Time:
8-15 Seconds (Approx depends on tractor)

Log Opening:
19 Inches

Working Height:
You adjust with your 3 point hitch

Safety Control Valve:
Detent, Auto Return

Operation Weight:
225 LBS

Shipping Weight:
250 LBS
